Plášť čističe vzduchu for BMW R45-R65LS..78-85 R65LS (1983)

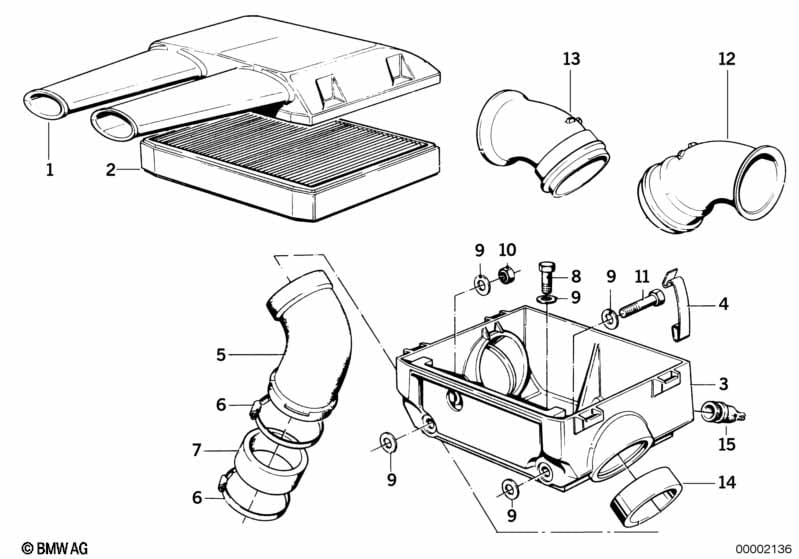

This Plášť čističe vzduchu technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FG* R65(USA)6381581/R45,R45/N,R65,R45 TIC,R45/N TIC,R65 TIC Modell 81 |
||||||||||
| 01 | Plášť čističe vzduchu horní | 1 | 09/1982 | 13721337675 | $25.81 | Shop at ECS Tuning | ||||
| 02 | Vložka vzduchového filtru | 1 | 13729062492 | Shop at ECS Tuning | ||||||
| 04 | Třmen | 4 | 13721337105 | $7.54 | Shop at ECS Tuning | |||||
| 05 | Sací potrubí levé | 2 | 13721335111 | $19.22 | Shop at ECS Tuning | |||||
| 06 | hadicová spona | L=47-54MM | 6 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 07 | Pryžové hrdlo | 50X59X30 | 2 | 13721264392 | $10.13 | Shop at ECS Tuning | ||||
| 08 | Šestihranný šroub | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 09 | Podložka | 8.4X16X3 | 5 | 13721337205 | $0.58 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Šestihranná matice | M8-8-ZNS3 | 1 | 12/1995 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 10 | Šestihranná matice | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 12 | Nálevka levá | 1 | 13721337233 | $14.92 | Shop at ECS Tuning | |||||
| 13 | Nálevka pravá | 1 | 13721337078 | $14.92 | Shop at ECS Tuning | |||||
| 14 | Trubka | 2 | 13721337229 | $14.47 | Shop at ECS Tuning | |||||
| 15 | Pryžový ventil | 1 | 13721337162 | $14.61 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
