Víko karburátoru, píst, skříň spouštěče for BMW R45-R65LS..78-85 R65LS (1983)

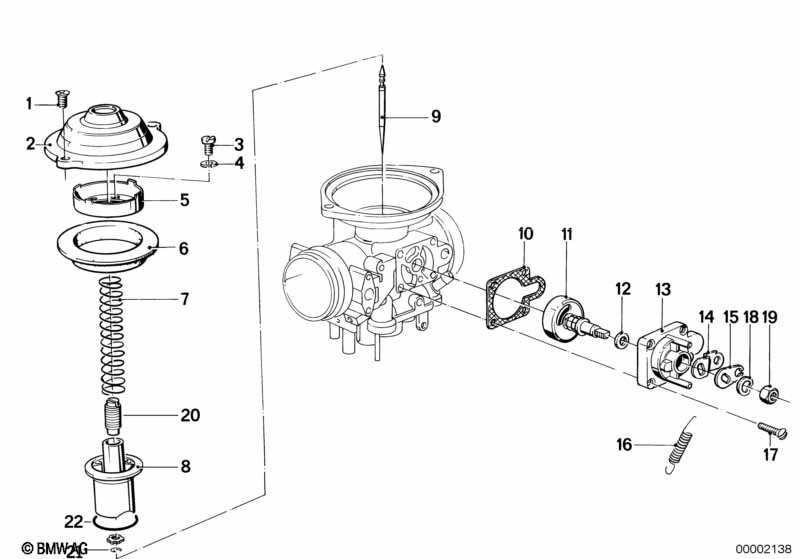

This Víko karburátoru, píst, skříň spouštěče technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FG* 01/80 | ||||||||||
| 01 | Šroub se zápustnou čočkovou hlavou | 4 | 13111337361 | $0.83 | Shop at ECS Tuning | |||||
| 02 | Víko | 2 | 13111337360 | $78.69 | +core | Shop at ECS Tuning | ||||
| 03 | Šroub s válcovou hlavou | 8 | 13111337359 | $1.48 | Shop at ECS Tuning | |||||
| 04 | Pružný kroužek | 8 | 13111335306 | $0.83 | Shop at ECS Tuning | |||||
| 05 | Přídržný kroužek | 2 | 13111337358 | $19.57 | Shop at ECS Tuning | |||||
| 06 | membrána | 2 | 13111254774 | $36.46 | Shop at ECS Tuning | |||||
| 07 | Pružina šoupátka | 2 | 09/1980 | 13111335324 | $9.42 | Shop at ECS Tuning | ||||
| 08 | Píst | 2 | 09/1982 | 13111338240 | $125.15 | +core | Shop at ECS Tuning | |||
| 09 | Jehla trysky | 2 | 09/1982 | 13111337692 | $7.21 | Shop at ECS Tuning | ||||
| 10 | Těsnění | 2 | 13111256353 | $1.67 | Shop at ECS Tuning | |||||
| 11 | Welle Starterkörper links | 1 | 09/1980 | 13111338515 | $37.50 | +core | Shop at ECS Tuning | |||
| 11 | Welle Starterkörper rechts | 1 | 09/1980 | 13111338516 | $37.50 | +core | Shop at ECS Tuning | |||
| 12 | Těsnicí kroužek | 2 | 13111257819 | $2.78 | Shop at ECS Tuning | |||||
| 13 | Pouzdro | 2 | 13111254754 | $17.93 | Shop at ECS Tuning | |||||
| 14 | Páka | 2 | 13111337368 | $2.74 | Shop at ECS Tuning | |||||
| 15 | Páka | 2 | 13111337369 | $14.92 | Shop at ECS Tuning | |||||
| 16 | Tažná pružina | 2 | 13111337370 | $3.35 | Shop at ECS Tuning | |||||
| 17 | Šroub se zápustnou čočkovou hlavou | 8 | 13111337367 | $1.48 | Shop at ECS Tuning | |||||
| 18 | Pružná podložka | 2 | 13111254759 | $1.48 | Shop at ECS Tuning | |||||
| 19 | Matice | 2 | 13111254760 | $0.83 | Shop at ECS Tuning | |||||
| 20 | Šroubový uzávěr | 2 | 09/1982 | 13111338241 | $5.15 | Shop at ECS Tuning | ||||
| 21 | Upínací pružina | 2 | 09/1982 | 13111338242 | $0.83 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
