Karburátor/ovládání škrticí klapky for BMW R45-R65LS..78-85 R65LS (1983)

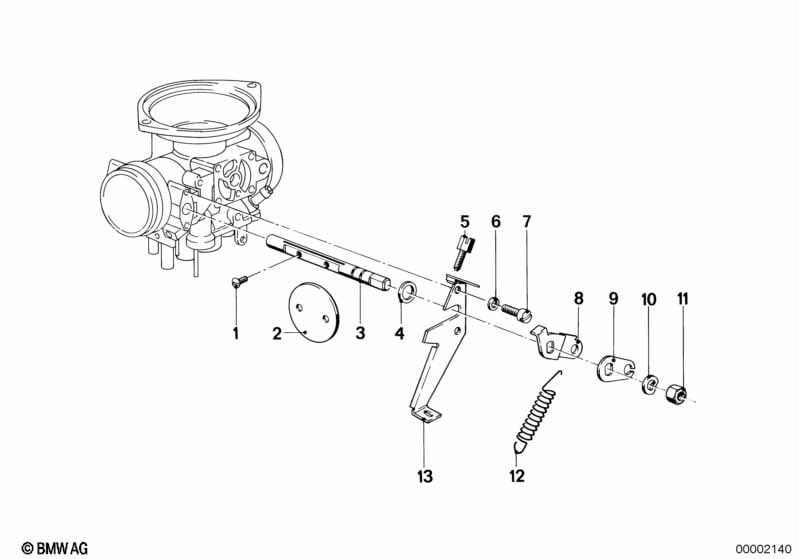

This Karburátor/ovládání škrticí klapky technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Šroub se zápustnou čočkovou hlavou | 4 | 13111254738 | $0.83 | Shop at ECS Tuning | |||||
| 02 | Škrticí klapka | 2 | 09/1981 | 13111337064 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Hřídel | 2 | 01/1980 | 13111336585 | $13.75 | Shop at ECS Tuning | ||||
| 04 | Těsnicí kroužek | 2 | 13111254739 | $4.51 | Shop at ECS Tuning | |||||
| 05 | Stavěcí šroub | 2 | 13111335311 | $3.35 | Shop at ECS Tuning | |||||
| 06 | Pružný kroužek | 4 | 13111335306 | $0.83 | Shop at ECS Tuning | |||||
| 07 | Šroub s válcovou hlavou | 4 | 13111337362 | $1.48 | Shop at ECS Tuning | |||||
| 08 | Páka pravá | 1 | 13111335607 | $3.89 | Shop at ECS Tuning | |||||
| 08 | Páka levá | 1 | 13111335609 | $3.35 | Shop at ECS Tuning | |||||
| 09 | Škrticí páka | 2 | 13111335608 | $3.35 | Shop at ECS Tuning | |||||
| 10 | Pružná podložka | 2 | 13111254759 | $1.48 | Shop at ECS Tuning | |||||
| 11 | Matice | 2 | 13111254760 | $0.83 | Shop at ECS Tuning | |||||
| 12 | Tažná pružina | 2 | 13111335606 | $6.47 | Shop at ECS Tuning | |||||
| 13 | Držák levý | 1 | 13111335304 | $11.66 | Shop at ECS Tuning | |||||
| 13 | Držák pravý | 1 | 13111335305 | $11.66 | Shop at ECS Tuning |
