Karburátor for BMW R45-R65LS..78-85 R65LS (1983)

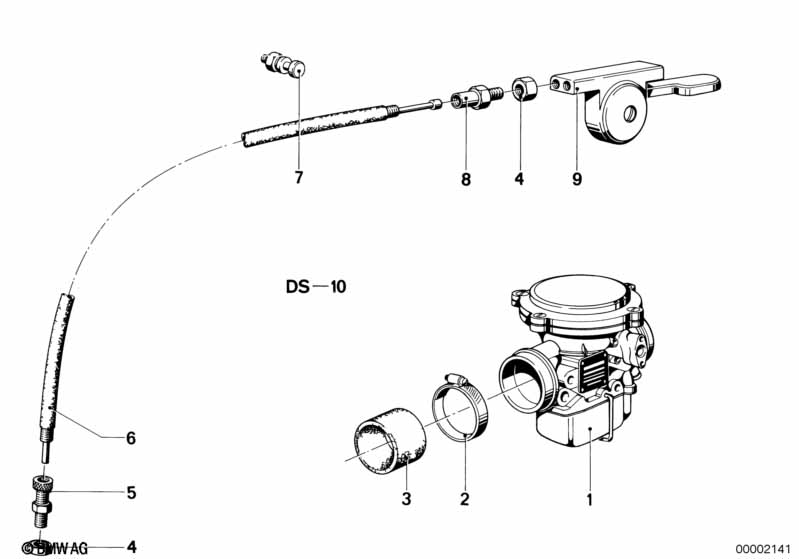

This Karburátor technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | hadicová spona | L=47-54MM | 4 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Pryžové hrdlo | 42X52X28 | 2 | 13721254654 | $10.13 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice | M5-4-ZN | 4 | 07119921038 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Maznice | 2 | 13231256295 | $9.39 | Shop at ECS Tuning | |||||
| 06 | Lanovod spouštěče levý | 1 | 13231255976 | $14.14 | Shop at ECS Tuning | |||||
| 06 | Lanovod spouštěče pravý | L=545MM | 1 | 13231255977 | $14.14 | Shop at ECS Tuning | ||||
| 06 | Lanovod spouštěče pravý | L=545MM | 1 | 13231255977 | $14.14 | Shop at ECS Tuning | ||||
| 07 | Upínací šroub | 2 | 13119057338 | $6.07 | Shop at ECS Tuning | |||||
| 08 | Maznice | 2 | 13231256019 | $4.39 | Shop at ECS Tuning | |||||
| 09 | Ovládání studeného startu | 1 | 13231260191 | $62.94 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Sada těsnění karburátor | 1 | 13111336951 | $14.80 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65LS Karburátor?
- This technical diagram illustrates the Karburátor within the Příprava a regulace paliva group for the R45-R65LS..78-85 R65LS produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the hadicová spona (Part #07129952121).
- Which models use the hardware listed in this Karburátor?
- The hardware and components featured in the Karburátor are specific to the R45-R65LS..78-85 R65LS produced during 1983. These technical specifications ensure that parts like the hadicová spona (07129952121) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Karburátor assembly?
- Each item in the Karburátor corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65LS, you can identify the hadicová spona by locating its position on the schematic, which then links to the official BMW part number 07129952121 for the Příprava a regulace paliva section.
