Vzduchový filtr sací potrubí for BMW R45-R65LS..78-85 R45 (1978)

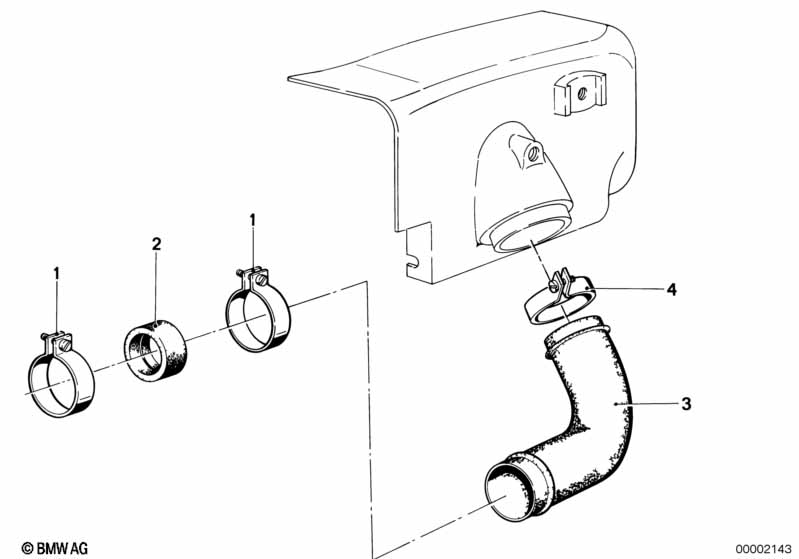

This Vzduchový filtr sací potrubí technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| *FG R 65 USA 10/79 /R 45, R 45 N, R 65 Modell 81 |
||||||||||
| 01 | hadicová spona | L=53-60MM | 2 | 09/1980 | 07129952123 | $1.78 | Shop at ECS Tuning | |||
| 02 | Pryžové hrdlo | 50X59X30 | 4 | 09/1980 | 13721264392 | $10.13 | Shop at ECS Tuning | |||
| 03 | Sací potrubí levé | 1 | 09/1980 | 13721335111 | $19.22 | Shop at ECS Tuning | ||||
| 03 | Sací potrubí pravé | 1 | 09/1980 | 13721335112 | $9.08 | Shop at ECS Tuning | ||||
| 04 | hadicová spona | L=47-54MM | 2 | 09/1980 | 07129952121 | $1.42 | Shop at ECS Tuning | |||
