Tlumič hluku sání/vložka filtru for BMW 7 Series E23 728 (1979)

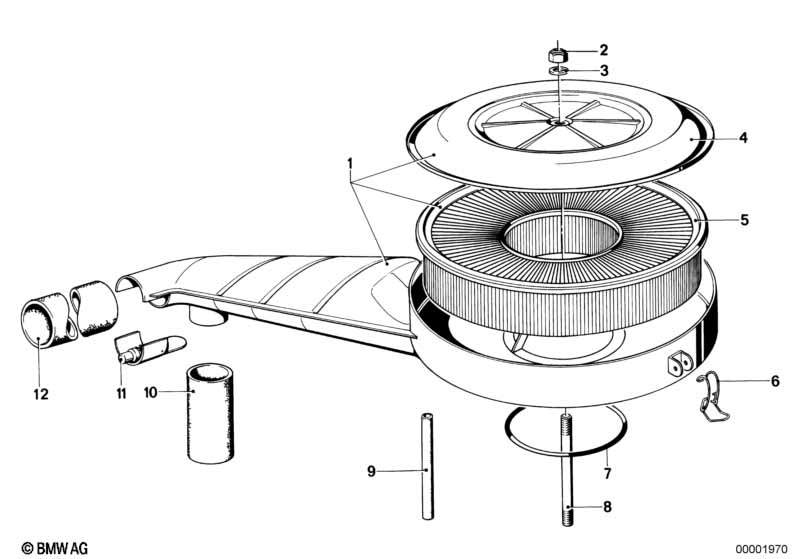

This Tlumič hluku sání/vložka filtru technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tlumič hluku sání | 1 | 13711265004 | $283.46 | Shop at ECS Tuning | |||||
| 02 | Šestihranná matice | M6-8-ZNS3 | 1 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 02 | Šestihranná matice samojisticí | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Podložka | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Víko | PUROLATOR | 1 | 13711263098 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Vložka vzduchového filtru | 1 | 13721265005 | Shop at ECS Tuning | ||||||
| 06 | Drátěný třmen | 5 | 13711259495 | $1.32 | Shop at ECS Tuning | |||||
| 07 | O-kroužek | 1 | 13711284260 | $4.02 | Shop at ECS Tuning | |||||
| 08 | Závrtný šroub | 1 | 13111268143 | $1.73 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Podtlaková hadice černá | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 10 | Hadice | 1 | 13731263964 | $5.91 | Shop at ECS Tuning | |||||
| 11 | Prvek pružné látky | PUROLATOR | 1 | 13711259709 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Prvek pružné látky | MANN+HUMMEL | 1 | 13711265003 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Vlnovec | 1 | 13711264491 | $11.27 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
