Tlumič hluku sání/vložka filtru for BMW 5 Series E12 520 (1976)

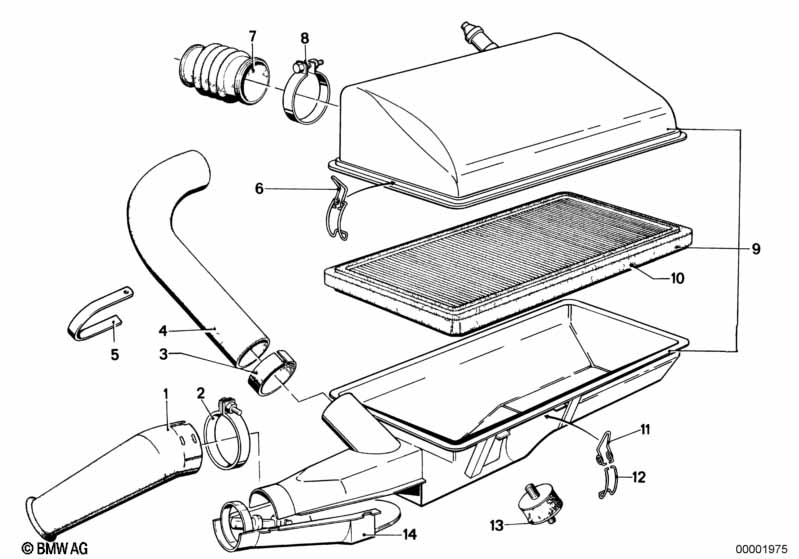

This Tlumič hluku sání/vložka filtru technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sací hrdlo | 1 | 13711258310 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | hadicová spona | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 03 | Rozpěrný kroužek | 2 | 13731257993 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Vzduchová hadice | 1 | 13731258029 | $18.97 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | hadicová spona | 1 | 13731257552 | UKONČENO | Shop at ECS Tuning | |||||
| 06 | Drátěný třmen | 4 | 13711259758 | $1.52 | Shop at ECS Tuning | |||||
| 07 | Vlnovec | 2 | 13731258412 | $11.50 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | hadicová spona | L=47-54MM | 4 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 09 | Tlumič hluku sání | 1 | 06/1974 | 13711261372 | UKONČENO | Shop at ECS Tuning | ||||
| 10 | Vložka vzduchového filtru | 1 | 13721257060 | UKONČENO | Shop at ECS Tuning | |||||
| 11 | Třmen | 1 | 13711259760 | UKONČENO | Shop at ECS Tuning | |||||
| 12 | Páka | 1 | 13711259759 | UKONČENO | Shop at ECS Tuning | |||||
| 14 | Plášť čističe vzduchu | 1 | 13711259708 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
