Karburátor montážní díly for BMW 1502-2002tii 2002 (1976)

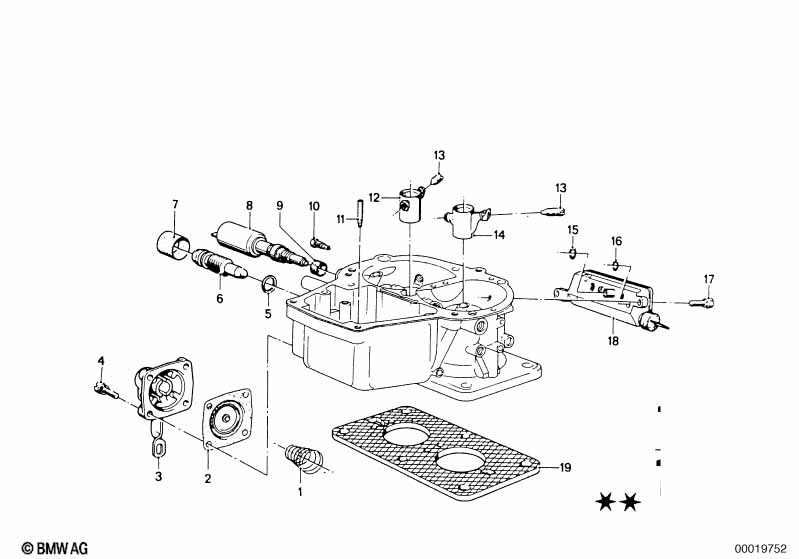

This Karburátor montážní díly technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex Didta | |||||||||
| Pro vozidla s Provedení Japonsko a Provedení Švédsko |
L807A=Ano =Ano |
|||||||||
| 01 | Tlačná pružina | 1 | 13111258927 | $1.71 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Sada víko čerpadla | 1 | 09/1973 | 07/1977 | 13111709144 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Sada víko čerpadla | 1 | 13111709144 | UKONČENO | Shop at ECS Tuning | |||||
| 04 | Šroub s válcovou hlavou | 4 | 13111258940 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | O-kroužek | 12,4X9,0X1,7 | 1 | 13111286431 | $7.80 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Regulační šroub cirkulace vzduchu | 1 | 13111265993 | $15.85 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Odpojovací ventil volnoběhu | 47,5 | 1 | 09/1973 | 07/1977 | 13111261024 | $160.37 | Shop at ECS Tuning | ||
| 09 | Těsnicí kroužek | 1 | 13111707010 | $2.48 | Shop at ECS Tuning | |||||
| 12 | Předrozprašovač | 3,4 | 1 | 13111260514 | $18.54 | Shop at ECS Tuning | ||||
| 13 | Závitový kolík | 2 | 13111258919 | $13.17 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Předrozprašovač | 4,0 | 1 | 13111260515 | $18.54 | Shop at ECS Tuning | ||||
| 15 | Těsnění | 1 | 13111258948 | UKONČENO | Shop at ECS Tuning | |||||
| 16 | Těsnicí kroužek | 1 | 13111257041 | UKONČENO | Shop at ECS Tuning | |||||
| 18 | Tepelný spouštěcí ventil | 1 | 13111258947 | UKONČENO | Shop at ECS Tuning | |||||
| 19 | Izolační příruba | 1 | 13111266764 | $22.10 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
