Karburátor montážní díly for BMW 1500-2000CS 1800 (1971)

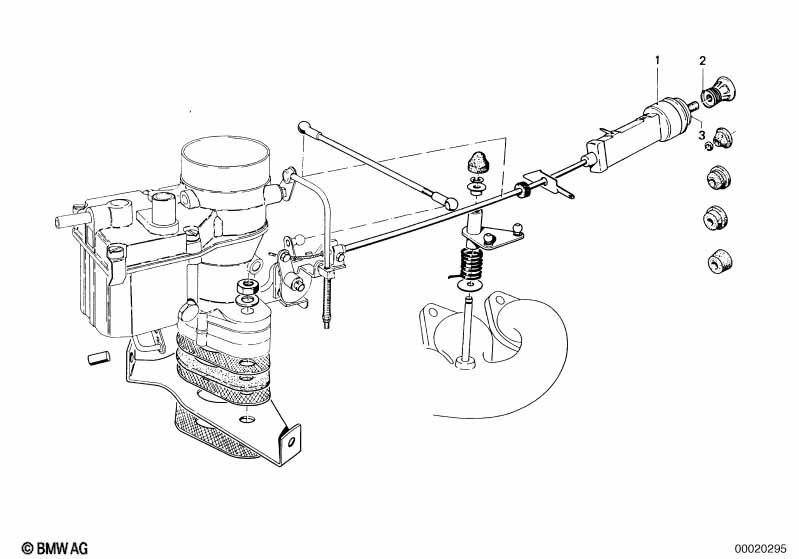

This Karburátor montážní díly technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi | |||||||||
| 01 | Bovden | 1 | 02/1962 | 12/1971 | 13231351011 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Knoflík | 1 | 01/1966 | 12/1971 | 13231351050 | $11.45 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Rozeta | 1 | 02/1962 | 10/1971 | 13231351723 | $2.87 | UKONČENO | Shop at ECS Tuning | ||
| 03 | Rozeta | 1 | 07/1968 | 12/1971 | 13231351008 | UKONČENO | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Karburátor montážní díly?
- This technical diagram illustrates the Karburátor montážní díly within the Příprava paliva group for the 1500-2000CS 1800 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Bovden (Part #13231351011).
- Which models use the hardware listed in this Karburátor montážní díly?
- The hardware and components featured in the Karburátor montážní díly are specific to the 1500-2000CS 1800 produced during 1971. These technical specifications ensure that parts like the Bovden (13231351011) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Karburátor montážní díly assembly?
- Each item in the Karburátor montážní díly corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Bovden by locating its position on the schematic, which then links to the official BMW part number 13231351011 for the Příprava paliva section.
