Karburátor-plovák/tryska for BMW 1500-2000CS 1800 (1971)

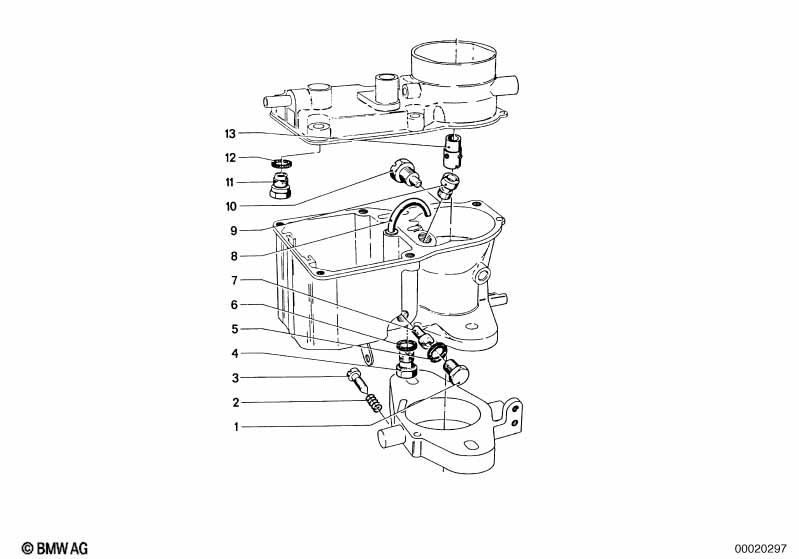

This Karburátor-plovák/tryska technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi | |||||||||
| 01 | Šroubový uzávěr | 1 | 13110639182 | $5.13 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Tlačná pružina | 1 | 13111250707 | $1.85 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Šroub pro seřizování směsi | 1 | 13111265930 | $6.36 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Obohacovací ventil | 1 | 13110639284 | UKONČENO | Shop at ECS Tuning | |||||
| 05 | Těsnicí kroužek | 1 | 13110639151 | $1.95 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Těsnicí kroužek | 1 | 13111253435 | $0.86 | Shop at ECS Tuning | |||||
| 07 | Hlavní tryska | 155 | 1 | 09/1963 | 01/1972 | 13111257042 | $19.64 | Shop at ECS Tuning | ||
| 08 | Vstřikovací trubka | 100 | 1 | 13111256965 | $14.98 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Vzdušník | 155 | 1 | 07/1968 | 12/1971 | 13110739137 | $3.52 | UKONČENO | Shop at ECS Tuning | |
| volitelně | ||||||||||
| 10 | Volnoběžná tryska | 45 | 1 | 13110539228 | $7.44 | UKONČENO | Shop at ECS Tuning | |||
| 10 | Volnoběžná tryska | G 42,5 | 1 | 13111257544 | $8.86 | UKONČENO | Shop at ECS Tuning | |||
| 11 | Jehlový ventil plováku | 1 | 13111271963 | $27.04 | Shop at ECS Tuning | |||||
| 12 | Těsnicí kroužek | 1 | 02/1962 | 12/1971 | 13111255586 | UKONČENO | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
