Palivový filtr/chlazení paliva for BMW 3 Series E46 330xd (2003)

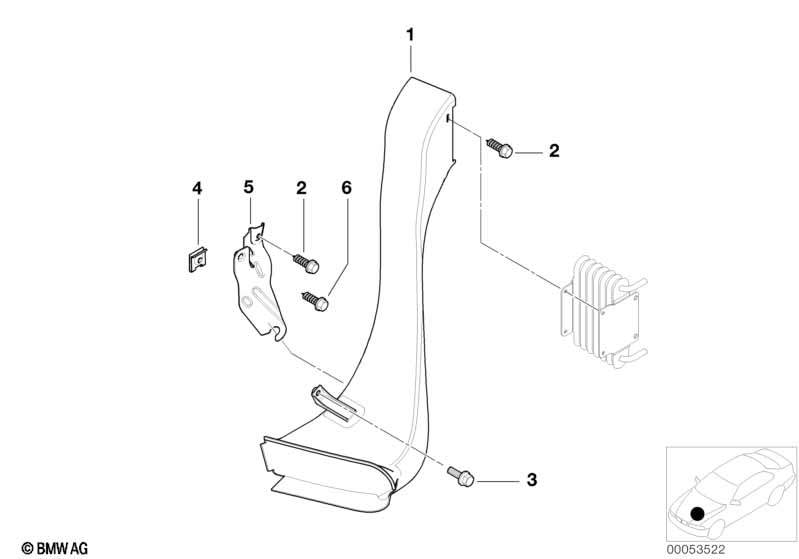

This Palivový filtr/chlazení paliva technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | pokračující vedení vzduchu viz HG 51 | |||||||||
| Pro vozidla s M aerodynamický paket Pro vozidla od 03/03 viz HG 51 |
S715A=Ano |
|||||||||
| 01 | Vedení vzduchu | 1 | 03/2003 | 13322247413 | Shop at ECS Tuning | |||||
| Pro vozidla s M aerodynamický paket a Aerodynamický paket |
S715A=Ne S716A=Ne |
|||||||||
| 01 | Vedení vzduchu | 1 | 09/2001 | 13327786986 | Shop at ECS Tuning | |||||
| 02 | Šestihranný šroub | TS5X17 SW8 D=16 | 3 | 07149126885 | $0.49 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub s podložkou | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Matice na plech | ST 4,8-6-ZNS3 | 1 | 07129904225 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Držák vedení vzduchu | 1 | 13322247699 | Shop at ECS Tuning | ||||||
| 06 | Šestihranný šroub na plech | ST4,8X19-C-Z2 | 1 | 07119916949 | $0.25 | Shop at ECS Tuning | ||||
