Tlumič hluku sání/vložka filtru for BMW MINI R50 Cooper (2000)

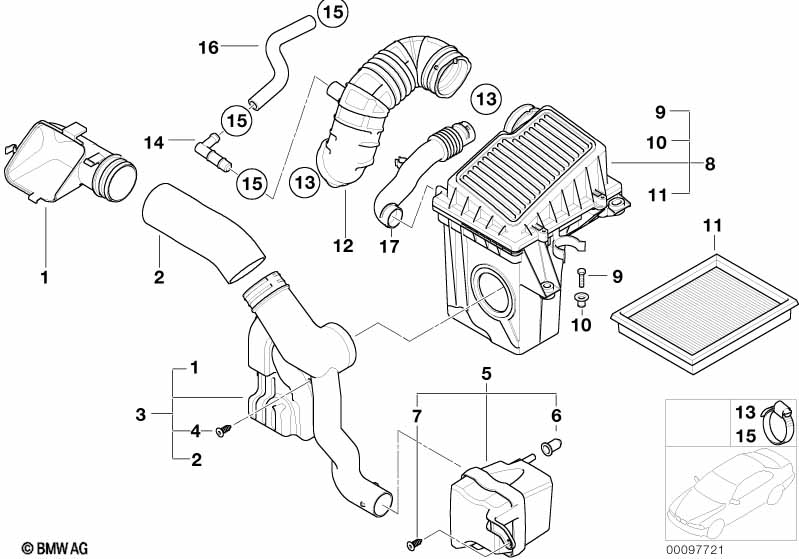

This Tlumič hluku sání/vložka filtru technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Není vhodné k John Cooper Works Tuning Kit; další informace viz HG13 FG95 |
|||||||||
| 01 | Sací potrubí | 1 | 13711477836 | $7.87 | Shop at ECS Tuning | |||||
| 02 | Sací potrubí | 1 | 13711477837 | $16.78 | Shop at ECS Tuning | |||||
| 03 | Sací potrubí | 1 | 13711477835 | $55.95 | Shop at ECS Tuning | |||||
| 04 | Šroub | 1 | 07130576677 | $0.29 | Shop at ECS Tuning | |||||
| 05 | Rezonátor | 1 | 13711477842 | $19.00 | Shop at ECS Tuning | |||||
| 06 | Objímka | 1 | 07130758637 | $1.77 | Shop at ECS Tuning | |||||
| 07 | Šroub | 1 | 07130576677 | $0.29 | Shop at ECS Tuning | |||||
| 08 | Tlumič hluku sání | 1 | 07/2004 | 13721477831 | $177.00 | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení pro chladné země |
S842A=Ano |
|||||||||
| 08 | Tlumič hluku sání | 1 | 07/2004 | 13727518582 | $171.85 | UKONČENO | Shop at ECS Tuning | |||
| 09 | Upevňovací šroub | M6 | 2 | 03/2002 | 07149146435 | $1.16 | Shop at ECS Tuning | |||
| 09 | Upevňovací šroub | M6 | 2 | 07149146435 | $1.16 | Shop at ECS Tuning | ||||
| 10 | Distanční pouzdro | 2 | 13721498674 | $1.21 | Shop at ECS Tuning | |||||
| 11 | Vložka vzduchového filtru | 1 | 07/2004 | 13721477840 | $17.93 | Shop at ECS Tuning | ||||
| Pro vozidla s Provedení pro chladné země |
S842A=Ano |
|||||||||
| 11 | Vložka vzduchového filtru | 1 | 13727520855 | $26.10 | Shop at ECS Tuning | |||||
| 12 | Vlnovec | 1 | 13721477839 | $43.15 | Shop at ECS Tuning | |||||
| 13 | hadicová spona | 2 | 07130953264 | $3.16 | Shop at ECS Tuning | |||||
| 14 | Úhelník | 1 | 13721174283 | $4.05 | Shop at ECS Tuning | |||||
| 15 | hadicová spona | D=20MM | 2 | 13717531833 | $2.73 | Shop at ECS Tuning | ||||
| 15 | hadicová spona | D=22MM | 1 | 13717531834 | $2.73 | Shop at ECS Tuning | ||||
| 16 | Lisovaná hadice | 1 | 13721477817 | $26.14 | Shop at ECS Tuning | |||||
| Pro vozidla s Provedení pro chladné země |
S842A=Ano |
|||||||||
| 17 | Vzduchová hadice | 1 | 13727518585 | $57.54 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Tlumič hluku sání/vložka filtru?
- This technical diagram illustrates the Tlumič hluku sání/vložka filtru within the Příprava paliva group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Sací potrubí (Part #13711477836).
- Which models use the hardware listed in this Tlumič hluku sání/vložka filtru?
- The hardware and components featured in the Tlumič hluku sání/vložka filtru are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Sací potrubí (13711477836) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tlumič hluku sání/vložka filtru assembly?
- Each item in the Tlumič hluku sání/vložka filtru corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Sací potrubí by locating its position on the schematic, which then links to the official BMW part number 13711477836 for the Příprava paliva section.
