Tlumič hluku sání/vložka filtru for BMW MINI R50 Cooper (2000)

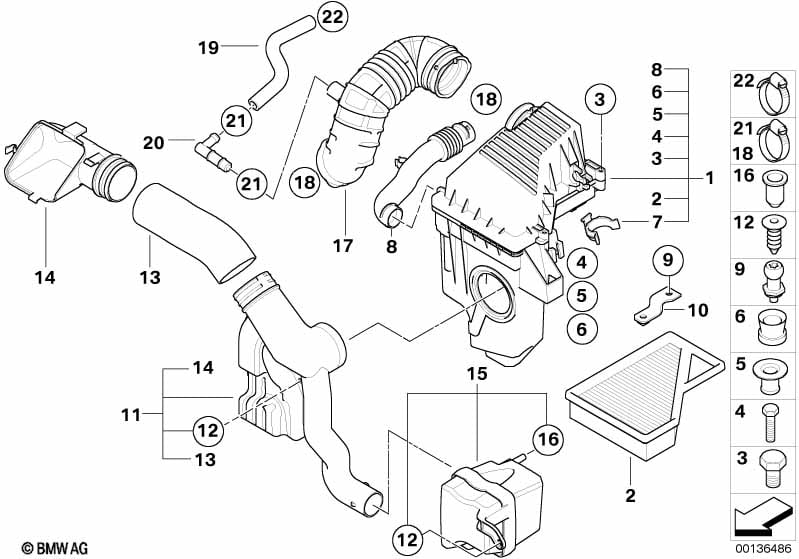

This Tlumič hluku sání/vložka filtru technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 09 | Doraz | 1 | 13727555907 | $3.41 | Shop at ECS Tuning | |||||
| 10 | Držák zadní | 1 | 13717531832 | $11.27 | UKONČENO | Shop at ECS Tuning | ||||
| 11 | Sací potrubí | 1 | 13711477835 | $55.95 | Shop at ECS Tuning | |||||
| 12 | Šroub | 2 | 07130576677 | $0.29 | Shop at ECS Tuning | |||||
| 13 | Sací potrubí | 1 | 13711477837 | $16.78 | Shop at ECS Tuning | |||||
| 14 | Sací potrubí | 1 | 13711477836 | $7.87 | Shop at ECS Tuning | |||||
| 15 | Rezonátor | 1 | 13711477842 | $19.00 | Shop at ECS Tuning | |||||
| 16 | Objímka | 1 | 07130758637 | $1.77 | Shop at ECS Tuning | |||||
| 17 | Vlnovec | 1 | 13721477839 | $43.15 | Shop at ECS Tuning | |||||
| 18 | hadicová spona | 2 | 07130953264 | $3.16 | Shop at ECS Tuning | |||||
| 19 | Lisovaná hadice | 1 | 13721477817 | $26.14 | Shop at ECS Tuning | |||||
| 20 | Úhelník | 1 | 13721174283 | $4.05 | Shop at ECS Tuning | |||||
| 21 | hadicová spona | D=20MM | 2 | 13717531833 | $2.73 | Shop at ECS Tuning | ||||
| 22 | hadicová spona | D=22MM | 1 | 13717531834 | $2.73 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
