Hrdlo škrticí klapky for BMW 3 Series E30 325ix (1991)
This Hrdlo škrticí klapky technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Automatická převodovka Eh |
=Ano |
|||||||||
| 01 | Hrdlo škrticí klapky Eh | CODE "AN" | 1 | 13541716066 | $679.37 | Shop at ECS Tuning | ||||
| 02 | Spínač škrticí klapky | 1 | 13631710559 | $117.43 | Shop at ECS Tuning | |||||
| Obdélníková zástrčka | ||||||||||
| Pro vozidla s Automatická převodovka Eh |
=Ano |
|||||||||
| 02 | Spínač škrticí klapky | EH | 1 | 13631707320 | $201.35 | UKONČENO | Shop at ECS Tuning | |||
| Válcový konektor | ||||||||||
| 03 | Šroub s válcovou hlavou | M4 X 9,2 | 2 | 13541705562 | $0.93 | Shop at ECS Tuning | ||||
| 04 | Víko | 1 | 13541711042 | $39.53 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Těsnění bez azbestu | 1 | 13541285471 | $0.79 | Shop at ECS Tuning | |||||
| 06 | Šroub s válcovou hlavou | M4 TX20 8.8 | 3 | 13541705561 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Uzavírací víčko | D=7,0MM | 1 | 11611727176 | $3.39 | Shop at ECS Tuning | ||||
| Pro vozidla s Katalyzátor |
=Ano |
|||||||||

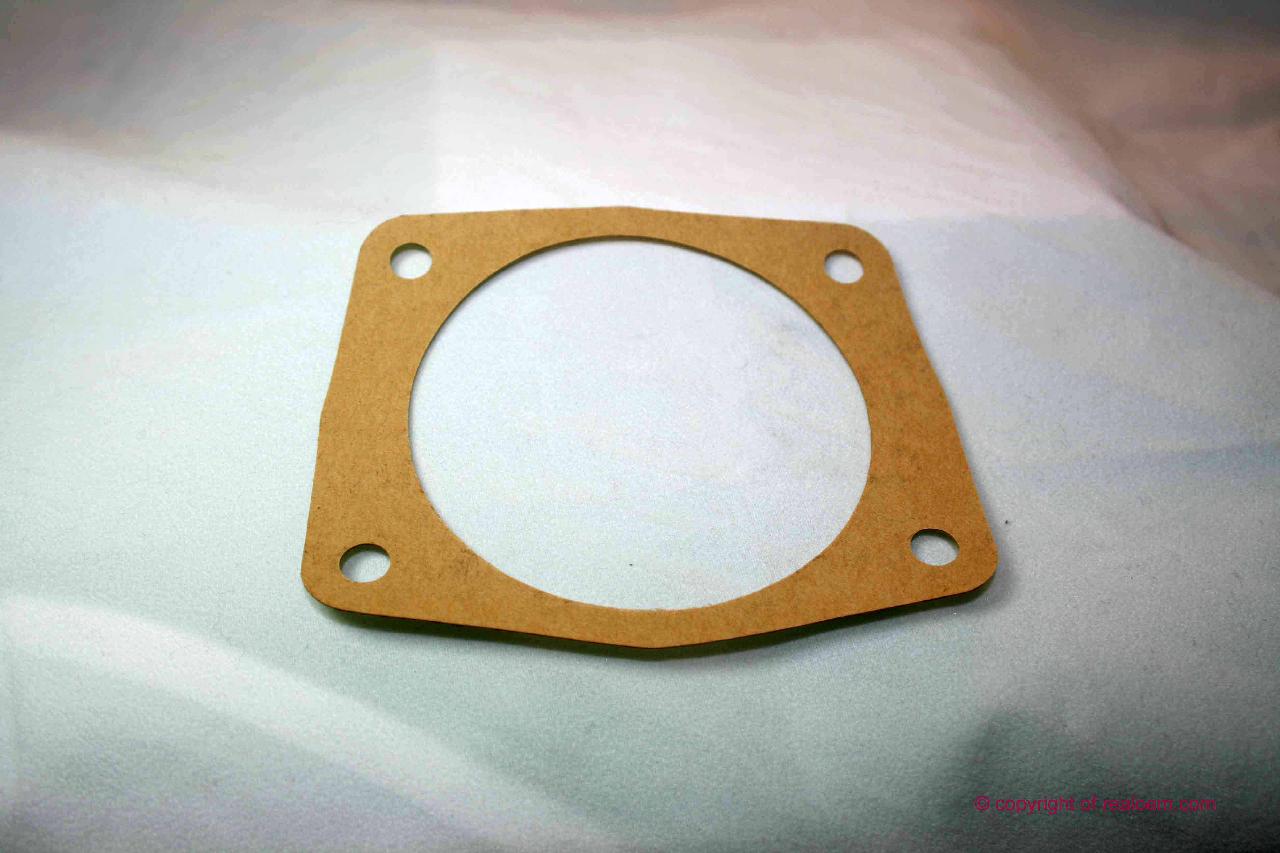

| 08 | Těsnění bez azbestu | 1 | 13541289576 | $0.88 | Shop at ECS Tuning | |||||
| 09 | Šestihranná matice s podložkou | M6 ZNT | 4 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Ložisko lanovod plynu | SCHWARZ | 1 | 13541747519 | $0.58 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
