Měřič množs.vzduchu el.reg.výkonu motoru for BMW 7 Series E32 730iL (1992)

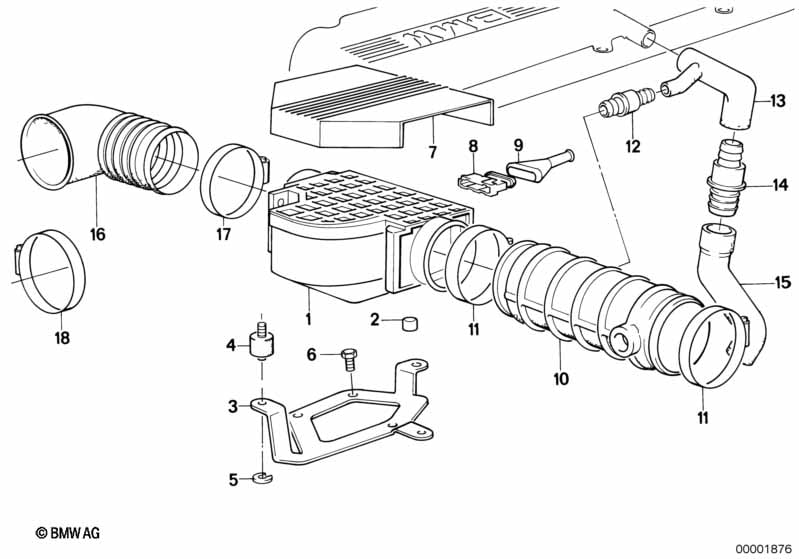

This Měřič množs.vzduchu el.reg.výkonu motoru technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Vhodné pouze pro Elektronická regulace výkonu motoru |
|||||||||
| 01 | Měřič množství vzduchu | 1 | 13627547981 | $580.29 | Shop at ECS Tuning | |||||
| 02 | Uzavírací víčko | 1 | 13621363874 | $7.12 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Držák měřič množství vzduchu | 1 | 13621707791 | $4.80 | Shop at ECS Tuning | |||||
| 04 | Pryžové ložisko | 3 | 13621707790 | $12.29 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Svorka | B6 | 3 | 07129934911 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Šestihranný šroub | M6X14-ZNNIV SI | 3 | 07119905964 | Shop at ECS Tuning | |||||
| 07 | Kryt | 1 | 13621711292 | $33.00 | UKONČENO | Shop at ECS Tuning | ||||
| 08 | Skříň konektoru | 1 | 12521706097 | $2.03 | UKONČENO | Shop at ECS Tuning | ||||
| 09 | Ochranné víčko | L=27,0MM | 1 | 61131270973 | $6.33 | Shop at ECS Tuning | ||||
| 10 | Vlnovec | EML | 1 | 13541719905 | $32.78 | Shop at ECS Tuning | ||||
| 11 | hadicová spona | L77-84 | 2 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 12 | Zpětný ventil | 1 | 11151718707 | $10.70 | Shop at ECS Tuning | |||||
| 13 | Odvzdušňovací hadice | EML | 1 | 11151719841 | $10.07 | Shop at ECS Tuning | ||||
| 14 | Průtočný omezovací ventil | EML | 1 | 11151719840 | $24.19 | Shop at ECS Tuning | ||||
| 15 | Odvzdušňovací hadice | EML | 1 | 11151719842 | $7.26 | UKONČENO | Shop at ECS Tuning | |||
| 16 | Vlnovec | 1 | 13711707767 | $28.30 | Shop at ECS Tuning | |||||
| 17 | hadicová spona | L83-90 | 1 | 07129952133 | $1.78 | Shop at ECS Tuning | ||||
| 18 | hadicová spona | L=90-110 | 1 | 18111763219 | $5.18 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
