Vstřikovací zařízení/vstřikovací ventil for BMW 3 Series E36 328i (1999)

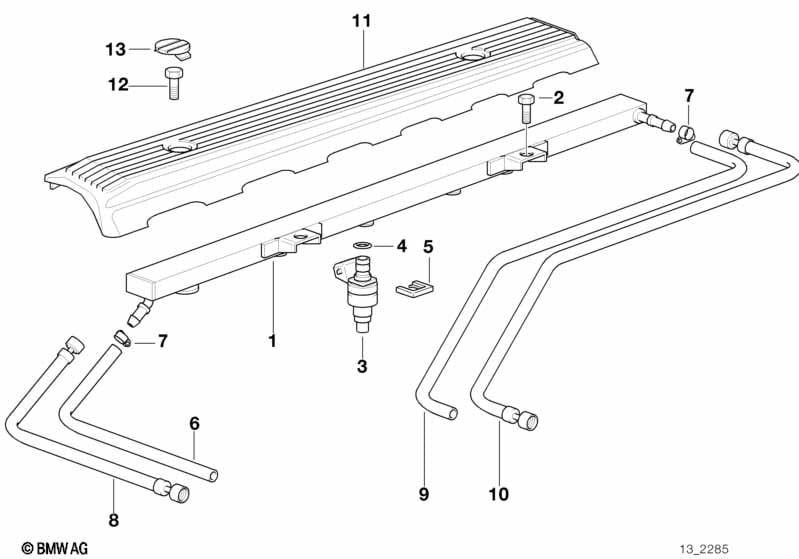

This Vstřikovací zařízení/vstřikovací ventil technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vstřikovací trubka | 1 | 09/1995 | 13531436470 | $81.63 | Shop at ECS Tuning | ||||
| 02 | Šestihranný šroub s podložkou | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Vstřikovací ventil | BOSCH | 6 | 13641703819 | $122.42 | Shop at ECS Tuning | ||||
| 04 | O-kroužek | 7,52X3,53 | 6 | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Svorka | 6 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 08 | Palivová hadice tok vpřed | 1 | 09/1995 | 13311427638 | $45.38 | +core | Shop at ECS Tuning | |||
| 10 | Palivová hadice odvod | 1 | 09/1995 | 13311427637 | $45.38 | +core | Shop at ECS Tuning | |||
| 11 | Kryt | 1 | 13541740160 | $22.98 | Shop at ECS Tuning | |||||
| 12 | Šestihranný šroub s podložkou | M6X20-Z3 | 2 | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 13 | Víčko | 2 | 11121726089 | $2.12 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Vstřikovací zařízení/vstřikovací ventil?
- This technical diagram illustrates the Vstřikovací zařízení/vstřikovací ventil within the Příprava paliva group for the 3 Series E36 328i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Vstřikovací trubka (Part #13531436470).
- Which models use the hardware listed in this Vstřikovací zařízení/vstřikovací ventil?
- The hardware and components featured in the Vstřikovací zařízení/vstřikovací ventil are specific to the 3 Series E36 328i produced during 1999. These technical specifications ensure that parts like the Vstřikovací trubka (13531436470) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vstřikovací zařízení/vstřikovací ventil assembly?
- Each item in the Vstřikovací zařízení/vstřikovací ventil corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Vstřikovací trubka by locating its position on the schematic, which then links to the official BMW part number 13531436470 for the Příprava paliva section.
