Palivová nádrž/montážní díly for BMW 3 Series E21 323i (1982)

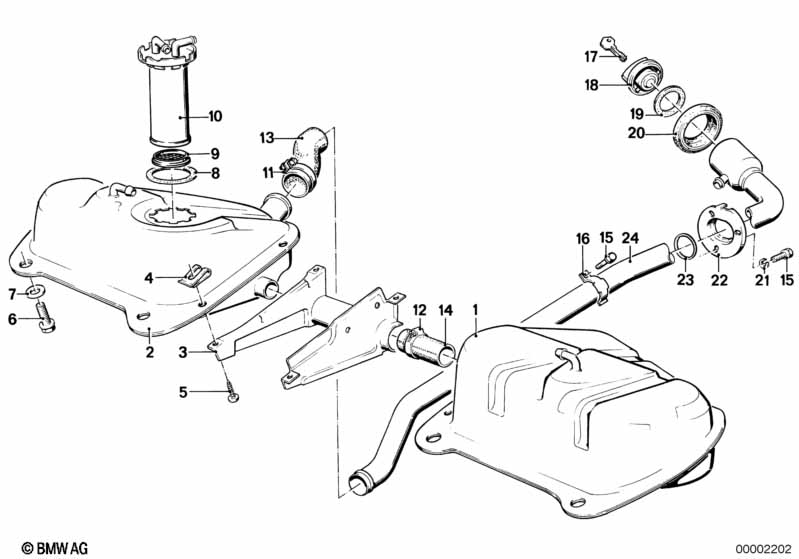

This Palivová nádrž/montážní díly technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Palivová nádrž levá | 1 | 08/1977 | 16111151529 | $298.96 | Shop at ECS Tuning | ||||
| 02 | Palivová nádrž pravá | 1 | 08/1977 | 16111120200 | $298.96 | UKONČENO | Shop at ECS Tuning | |||
| 03 | Krycí plech | 1 | 08/1979 | 16121151525 | $17.71 | Shop at ECS Tuning | ||||
| 04 | Matice na plech | B6,3-6 | 4 | 08/1977 | 16111152613 | $0.35 | Shop at ECS Tuning | |||
| 05 | Šestihranný šroub, plech | ST6,3X16-R-U2-Z | 4 | 08/1977 | 07119905017 | $0.38 | Shop at ECS Tuning | |||
| 06 | Šestihranný šroub | M8X16 | 6 | 07119901190 | $4.39 | UKONČENO | Shop at ECS Tuning | |||
| 07 | Podložka | A8,4 | 6 | 08/1977 | 33311108205 | $0.16 | Shop at ECS Tuning | |||
| 08 | O-kroužek | D=58,8X4,2 | 1 | 08/1977 | 16111744369 | $1.68 | Shop at ECS Tuning | |||
| 10 | Ponorné trubkové čidlo pro kovovou nádrž | 1 | 08/1977 | 16121114255 | $190.34 | UKONČENO | Shop at ECS Tuning | |||
| 11 | hadicová spona | L42-48 | 2 | 08/1977 | 07129952119 | $1.15 | Shop at ECS Tuning | |||
| 12 | hadicová spona | L37-43 | 2 | 08/1977 | 07129952117 | $1.09 | Shop at ECS Tuning | |||
| 13 | Hadice | 1 | 08/1977 | 16121176793 | $34.38 | Shop at ECS Tuning | ||||
| 14 | Hadice | 1 | 08/1977 | 16121176795 | $24.82 | Shop at ECS Tuning | ||||
| 15 | Šestihranný šroub s podložkou | M6X16-U1-8.8 | 4 | 08/1977 | 07119904524 | $0.25 | Shop at ECS Tuning | |||
| 16 | Spona | 1 | 08/1977 | 16121115267 | $0.38 | UKONČENO | Shop at ECS Tuning | |||
| 18 | Uzavírací víko nádrže uzamykatelné | CODE | 1 | 08/1977 | 16121178534 | Shop at ECS Tuning | ||||
| 19 | Pryžové těsnění | 1 | 08/1977 | 16111179680 | $6.70 | Shop at ECS Tuning | ||||
| 20 | Pryžové těsnění | 1 | 08/1977 | 16111105721 | $6.83 | UKONČENO | Shop at ECS Tuning | |||
| 21 | Pryžový kotouč | 1 | 08/1977 | 34414045712 | $0.20 | Shop at ECS Tuning | ||||
| 22 | Příruba | 1 | 08/1977 | 16121114977 | $1.97 | UKONČENO | Shop at ECS Tuning | |||
| 23 | Těsnění | 1 | 08/1977 | 16121114976 | $1.60 | Shop at ECS Tuning | ||||
| 24 | Plnicí trubka | 1 | 08/1977 | 16121115164 | $47.65 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
