Uzavírací víko nádrže for BMW 5 Series E12 518 (1978)

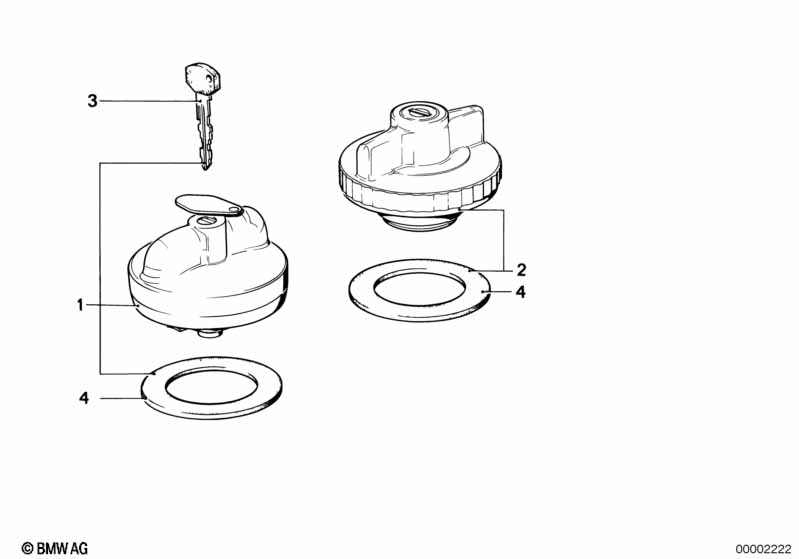

This Uzavírací víko nádrže technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uzavírací víko nádrže uzamykatelné | 1 | 09/1974 | 16111106487 | $32.92 | Shop at ECS Tuning | ||||
| 02 | Uzavírací víko nádrže uzamykatelné | CODE | 1 | 09/1974 | 16121178534 | Shop at ECS Tuning | ||||
| 03 | Klíč od nádrže (kód) | KOEHLER | 1 | 16111103693 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Pryžové těsnění | 1 | 16111179680 | $6.70 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 518 Uzavírací víko nádrže?
- This technical diagram illustrates the Uzavírací víko nádrže within the Zásobování palivem group for the 5 Series E12 518 produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the Uzavírací víko nádrže uzamykatelné (Part #16111106487).
- Which models use the hardware listed in this Uzavírací víko nádrže?
- The hardware and components featured in the Uzavírací víko nádrže are specific to the 5 Series E12 518 produced during 1978. These technical specifications ensure that parts like the Uzavírací víko nádrže uzamykatelné (16111106487) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Uzavírací víko nádrže assembly?
- Each item in the Uzavírací víko nádrže corresponds to the numbered list below the illustration. For the 5 Series E12 518, you can identify the Uzavírací víko nádrže uzamykatelné by locating its position on the schematic, which then links to the official BMW part number 16111106487 for the Zásobování palivem section.
