Palivová nádrž plastová for BMW 5 Series E34 535i (1992)

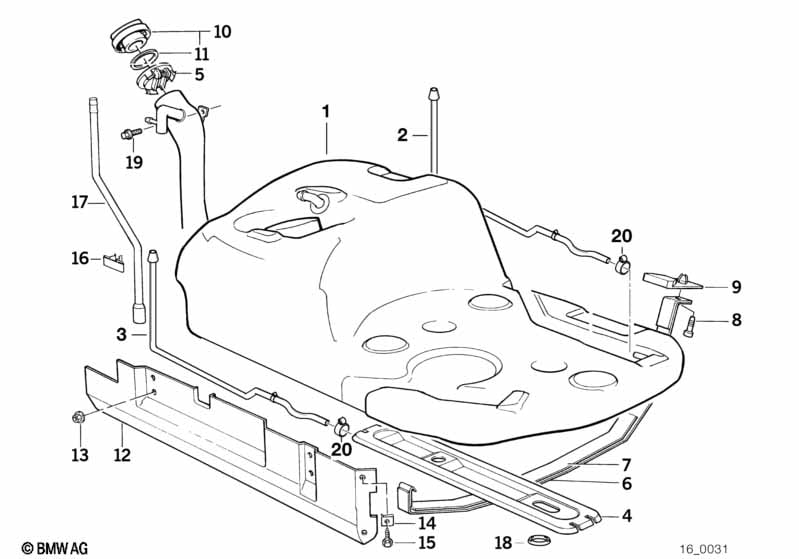

This Palivová nádrž plastová technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Palivová nádrž plastová | 80L | 1 | 16111179436 | $469.84 | Shop at ECS Tuning | ||||
| 02 | Odvzdušňovací potrubí | 1 | 16119070649 | $29.85 | Shop at ECS Tuning | |||||
| 03 | Odvzdušňovací potrubí | 1 | 16119070648 | Shop at ECS Tuning | ||||||
| 04 | Vyztužení | 2 | 16111179538 | $14.58 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Bezolovnatá výplň | 1 | 16111180157 | $5.12 | Shop at ECS Tuning | |||||
| 06 | Upínací pás levý | 80L | 1 | 16111179574 | $21.02 | Shop at ECS Tuning | ||||
| 06 | Upínací pás pravý | 80L | 1 | 16111179575 | $21.02 | Shop at ECS Tuning | ||||
| 07 | Podložka | 90X55X7 | 4 | 16111177873 | $7.52 | Shop at ECS Tuning | ||||
| 07 | Podložka | 660MM | 2 | 16111178667 | $7.52 | Shop at ECS Tuning | ||||
| 07 | Podložka | 80X50X10 | 2 | 16111178676 | $1.08 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Šroub s válcovou hlavou s podložkou | M8X30-U1-ZNS3 | 2 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Distanční vložka | 2 | 16111179032 | $1.95 | Shop at ECS Tuning | |||||
| 10 | Uzavírací víko nádrže neuzamykatelný | 1 | 16111184718 | $11.65 | Shop at ECS Tuning | |||||
| 11 | Pryžové těsnění | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||
| 12 | Tepelný ochranný kryt | ALU | 1 | 16111179433 | $19.35 | UKONČENO | Shop at ECS Tuning | |||
| 13 | Kombinovaná matice | 4 | 07147305178 | Shop at ECS Tuning | ||||||
| 14 | Matice na plech | ST 4,8-4-ZNS3 | 2 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 15 | Šroub s čočkovitou hlavou | M5X10 | 2 | 07149149399 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Svorka | 1 | 16131179256 | $1.15 | Shop at ECS Tuning | |||||
| 17 | Trubka | 435 | 1 | 16131179986 | $7.93 | Shop at ECS Tuning | ||||
| 18 | Pružná podložka | 2 | 16111180168 | $0.46 | UKONČENO | Shop at ECS Tuning | ||||
| 19 | Šestihranný šroub s podložkou | M6X10-Z1 | 1 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| 20 | hadicová spona | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
