Vyrovnávací nádoba/vedení for BMW 3 Series E30 318i (1994)

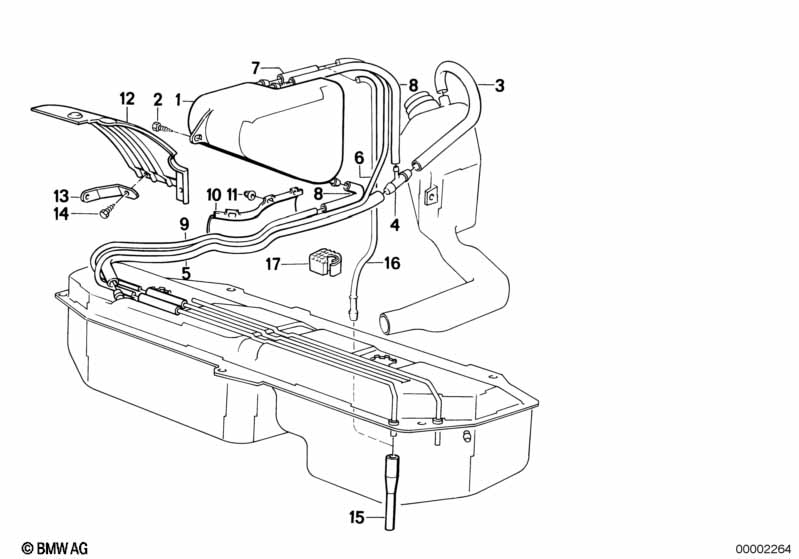

This Vyrovnávací nádoba/vedení technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vyrovnávací nádoba | 1 | 16131178014 | $128.85 | Shop at ECS Tuning | |||||
| 02 | Šestihranný šroub na plech | ST6,3X19-C-Z2 | 1 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 03 | Hadice | 1 | 16111179675 | Shop at ECS Tuning | ||||||
| 04 | Rozdělovač | 1 | 16131178752 | $27.17 | UKONČENO | Shop at ECS Tuning | ||||
| 05 | Hadice | 14X20X1340 | 1 | 16121177553 | $34.54 | Shop at ECS Tuning | ||||
| 06 | Trubka | 8X0,7X1805 | 1 | 16131178475 | $67.02 | +core | Shop at ECS Tuning | |||
| 07 | Palivová hadice | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 08 | Palivová hadice | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 09 | Trubka | 6X0,7X1605 | 1 | 16131179694 | $4.32 | Shop at ECS Tuning | ||||
| 10 | Kryt | 1 | 16131179011 | $43.68 | Shop at ECS Tuning | |||||
| 11 | Plastová matice čep s hrubým závitem | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 12 | Krycí plech | 1 | 16131179779 | $9.20 | Shop at ECS Tuning | |||||
| 13 | Uchycení | 1 | 16131176749 | $1.83 | Shop at ECS Tuning | |||||
| 14 | Šestihranný šroub na plech | ST6,3X16-C-Z2-Z | 2 | 07119916966 | $0.27 | UKONČENO | Shop at ECS Tuning | |||
| Pro vozidla s Odpadnutí katalyzátor |
S199A=Ano |
|||||||||
| 15 | Koncovka | 1 | 16131177514 | $1.73 | UKONČENO | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
