Zásobování palivem/vedení for BMW 3 Series E21 323i (1979)

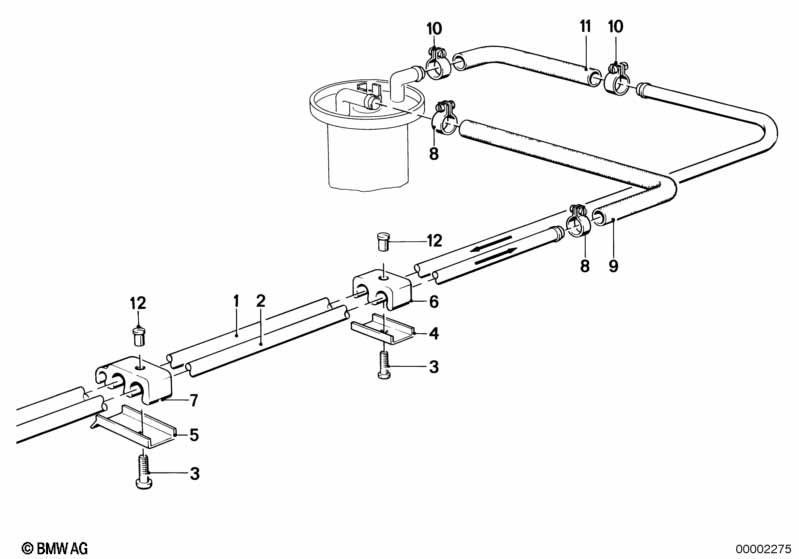

This Zásobování palivem/vedení technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Přívodní vedení | 1 | 12/1976 | 16121152628 | $32.03 | Shop at ECS Tuning | ||||
| 02 | Zpětné potrubí | 1 | 12/1976 | 16121118994 | $30.73 | Shop at ECS Tuning | ||||
| 03 | Řezný šroub | X | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 04 | Uchycení | X | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 05 | Uchycení | X | 16121155064 | $1.62 | Shop at ECS Tuning | |||||
| 06 | Upínací díl | 5 | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 07 | Spona | 7 | 16121177005 | $0.93 | Shop at ECS Tuning | |||||
| 08 | hadicová spona | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Palivová hadice | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 12 | Pouzdro | X | 41121877025 | $0.20 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
