Zásobování palivem/vedení for BMW 6 Series E24 M6 (1988)

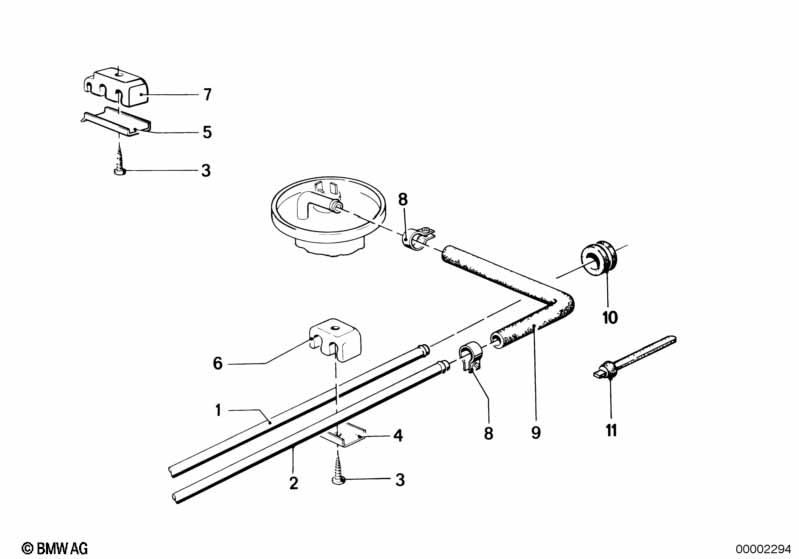

This Zásobování palivem/vedení technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Přívodní vedení | 1 | 09/1982 | 16121178468 | $33.08 | Shop at ECS Tuning | ||||
| 02 | Zpětné potrubí | 1 | 09/1982 | 16121177267 | $33.08 | Shop at ECS Tuning | ||||
| 03 | Řezný šroub | X | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 04 | Uchycení | 4 | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 05 | Uchycení | 9 | 16121155064 | $1.62 | Shop at ECS Tuning | |||||
| 06 | Upínací díl | 4 | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 07 | Spona | 9 | 16121177005 | $0.93 | Shop at ECS Tuning | |||||
| 08 | hadicová spona | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Palivová hadice | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 10 | Pryžové hrdlo | 1 | 16121105846 | $10.57 | Shop at ECS Tuning | |||||
| 11 | Kabelová spojka | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning |
