Plnicí trubka for BMW 8 Series E31 850Ci

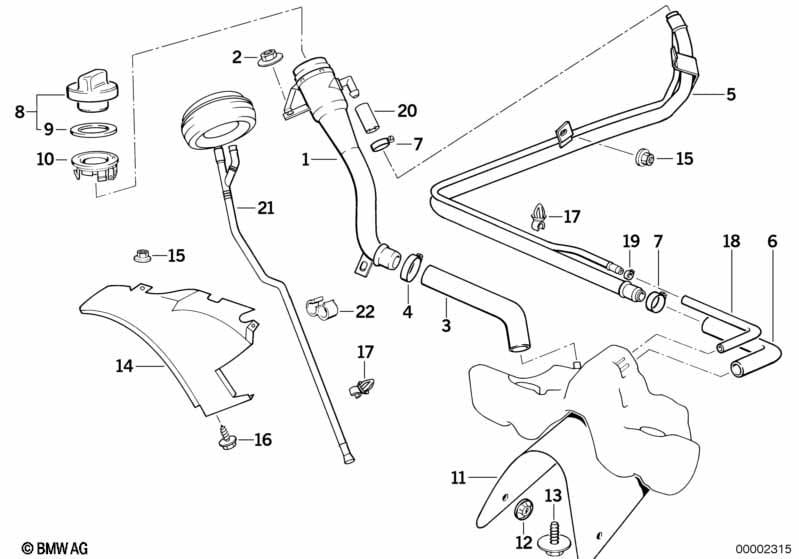

This Plnicí trubka technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Odpadnutí katalyzátor |
S199A=Ne |
|||||||||
| 01 | Plnicí trubka plastová pro katalyzátor | 1 | 16111182762 | $95.52 | UKONČENO | Shop at ECS Tuning | ||||
| Pro vozidla s Odpadnutí katalyzátor |
S199A=Ano |
|||||||||
| 01 | Plnicí trubka plastová bez katalyzátoru | 1 | 16111182764 | $54.68 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Šestihranná matice | BM6-8-ZNFE SW | 2 | 07129905470 | $0.29 | Shop at ECS Tuning | ||||
| 03 | Hadice | 1 | 16111180899 | $48.42 | Shop at ECS Tuning | |||||
| 04 | hadicová spona | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 05 | Odvzdušňovací potrubí | 1 | 16132227655 | $92.35 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Lisovaná hadice | 18X24MM | 1 | 16131180664 | $26.57 | UKONČENO | Shop at ECS Tuning | |||
| 07 | hadicová spona | L16-30 | 4 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Uzavírací víko nádrže neuzamykatelný | 1 | 16111184718 | $11.65 | Shop at ECS Tuning | |||||
| 09 | Pryžové těsnění | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||
| 11 | Tepelná izolace | 1 | 16111181962 | $199.76 | UKONČENO | Shop at ECS Tuning | ||||
| 12 | Matice na plech | D=30MM, ZNS3 | 4 | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 13 | Šestihranný šroub na plech | 1 | 16111181129 | $3.09 | UKONČENO | Shop at ECS Tuning | ||||
| 14 | Kryt podběh kola zadní pravý | 1 | 16111181087 | $92.35 | UKONČENO | Shop at ECS Tuning | ||||
| 15 | Plastová matice | 3 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 16 | Šroub na plech | 3 | 16111181885 | $0.28 | UKONČENO | Shop at ECS Tuning | ||||
| 17 | Svorka | 2 | 17111712004 | $0.98 | Shop at ECS Tuning | |||||
| 18 | Hadice | 1 | 16131179180 | $9.02 | Shop at ECS Tuning | |||||
| 19 | hadicová spona | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 20 | Palivová hadice | 18X23/CO | X | 16131181552 | $40.50 | UKONČENO | Shop at ECS Tuning | |||
| 21 | Trubka | 1 | 16111182015 | $14.28 | UKONČENO | Shop at ECS Tuning | ||||
| 22 | Kabelové držáky | 1 | 12421284411 | $1.78 | Shop at ECS Tuning | |||||
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Plnicí trubka?
- This technical diagram illustrates the Plnicí trubka within the Zásobování palivem group for the 8 Series E31 850Ci. It provides a detailed exploded view of the components, identifying key parts such as the Plnicí trubka plastová pro katalyzátor (Part #16111182762).
- Which models use the hardware listed in this Plnicí trubka?
- The hardware and components featured in the Plnicí trubka are specific to the 8 Series E31 850Ci. These technical specifications ensure that parts like the Plnicí trubka plastová pro katalyzátor (16111182762) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Plnicí trubka assembly?
- Each item in the Plnicí trubka corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Plnicí trubka plastová pro katalyzátor by locating its position on the schematic, which then links to the official BMW part number 16111182762 for the Zásobování palivem section.
