Filtr s aktivním uhlím/vedení for BMW 3 Series E36 318ti (1999)

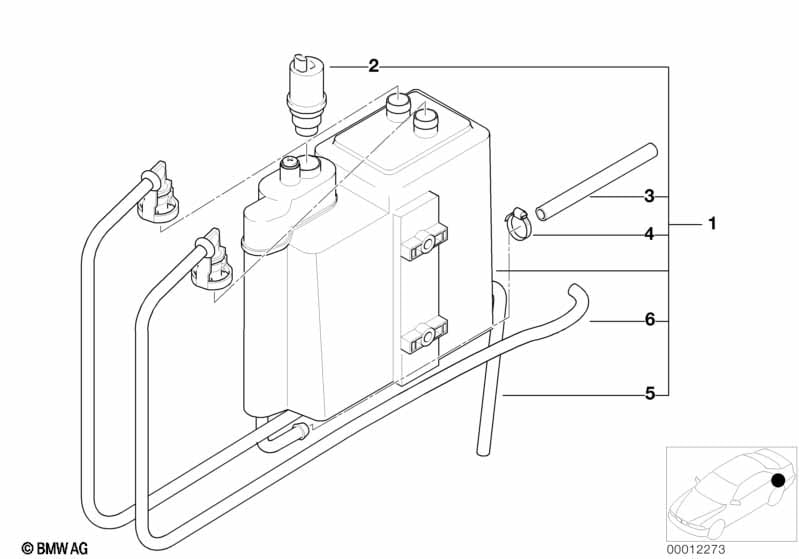

This Filtr s aktivním uhlím/vedení technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtr s aktivním uhlím | ZB | 1 | 01/1997 | 16131183702 | $404.27 | UKONČENO, +core | Shop at ECS Tuning | ||
| 02 | Odpojovací ventil | 1 | 01/1997 | 16131184235 | $78.08 | Shop at ECS Tuning | ||||
| 03 | Palivová hadice | 18X23/CO | 1 | 01/1997 | 16131181552 | $40.50 | UKONČENO | Shop at ECS Tuning | ||
| 04 | hadicová spona | L18-24 | 1 | 01/1997 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 05 | Odvzdušňovací potrubí | ZB | 1 | 01/1997 | 16131183706 | $15.25 | UKONČENO | Shop at ECS Tuning | ||
| 06 | Odvzdušňovací potrubí | ZB | 1 | 01/1997 | 16131183703 | $15.25 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
