Palivová nádrž for BMW 2500-3.3Li 3.0S (1974)

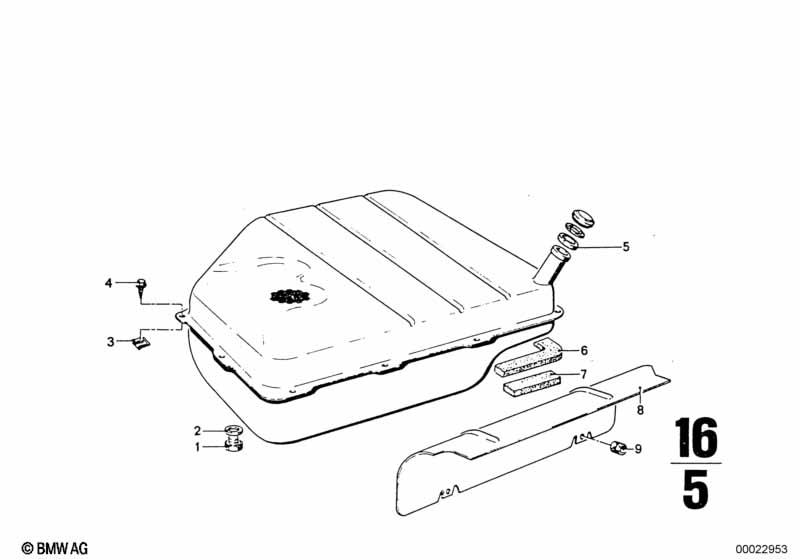

This Palivová nádrž technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1974.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Šroubový uzávěr | M10X1-ST-ZNS3 | 1 | 07119904393 | $1.89 | Shop at ECS Tuning | ||||
| 02 | Těsnicí kroužek | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Matice na plech | ST4,2-2 | 10 | 07129904245 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub na plech s podložkou | A6,5X19 | 10 | 51231806882 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Pryžové těsnění | 1 | 16111105721 | $6.83 | UKONČENO | Shop at ECS Tuning | ||||
| 06 | Těsnění | 1 | 08/1968 | 02/1977 | 16111100205 | $7.83 | Shop at ECS Tuning | |||
| 06 | Těsnění | 1 | 09/1973 | 02/1977 | 16111117054 | $9.41 | Shop at ECS Tuning | |||
| 07 | Těsnění | 3 | 16111118655 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Palivová nádrž?
- This technical diagram illustrates the Palivová nádrž within the Zásobování palivem group for the 2500-3.3Li 3.0S produced during 1974. It provides a detailed exploded view of the components, identifying key parts such as the Šroubový uzávěr (Part #07119904393).
- Which models use the hardware listed in this Palivová nádrž?
- The hardware and components featured in the Palivová nádrž are specific to the 2500-3.3Li 3.0S produced during 1974. These technical specifications ensure that parts like the Šroubový uzávěr (07119904393) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Palivová nádrž assembly?
- Each item in the Palivová nádrž corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Šroubový uzávěr by locating its position on the schematic, which then links to the official BMW part number 07119904393 for the Zásobování palivem section.
