Paliv. filtr/snímač výšky hladiny pravý for BMW MINI R50 Cooper (2000)

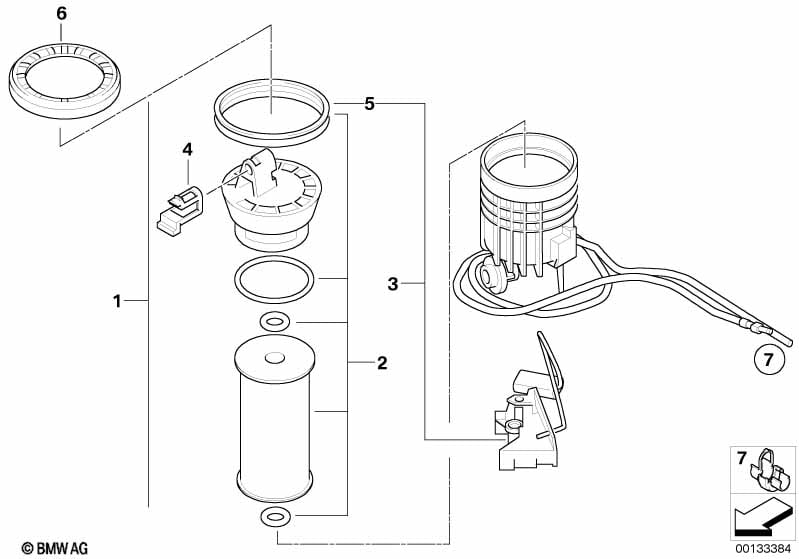

This Paliv. filtr/snímač výšky hladiny pravý technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Palivový filtr se snímačem výšky hladiny | 1 | 16146765122 | $214.38 | Shop at ECS Tuning | |||||
| 03 | Snímač výšky hladiny pravý | 1 | 03/2002 | 16146760760 | $95.48 | Shop at ECS Tuning | ||||
| 04 | Pojistná svorka pro rychlospojku | 1 | 16146758282 | $7.88 | Shop at ECS Tuning | |||||
| 05 | Pryžové těsnění | 1 | 16141182905 | $6.70 | Shop at ECS Tuning | |||||
| 06 | Šroubovací víčko | 1 | 16116762417 | $4.38 | Shop at ECS Tuning | |||||
| 07 | Pojistná svorka pro rychlospojku | 1 | 16146764201 | $2.08 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Paliv. filtr/snímač výšky hladiny pravý?
- This technical diagram illustrates the Paliv. filtr/snímač výšky hladiny pravý within the Zásobování palivem group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Palivový filtr se snímačem výšky hladiny (Part #16146765122).
- Which models use the hardware listed in this Paliv. filtr/snímač výšky hladiny pravý?
- The hardware and components featured in the Paliv. filtr/snímač výšky hladiny pravý are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Palivový filtr se snímačem výšky hladiny (16146765122) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Paliv. filtr/snímač výšky hladiny pravý assembly?
- Each item in the Paliv. filtr/snímač výšky hladiny pravý corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Palivový filtr se snímačem výšky hladiny by locating its position on the schematic, which then links to the official BMW part number 16146765122 for the Zásobování palivem section.
