Palivová nádrž/montážní díly for BMW 5 Series E60 530i (2005)

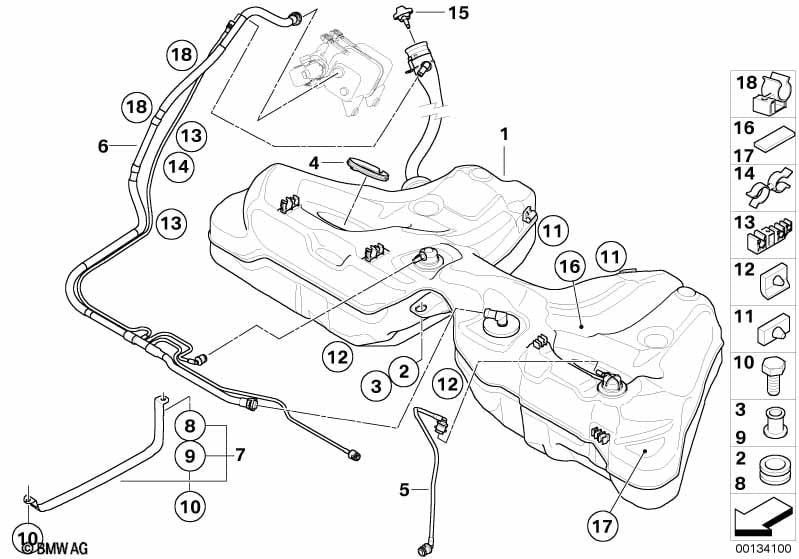

This Palivová nádrž/montážní díly technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Palivová nádrž plastová s plnicí trubkou | 1 | 16147177011 | $476.65 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Pryžové těsnění | B10 | 2 | 16146750467 | $6.70 | Shop at ECS Tuning | ||||
| 02 | Pryžová průchodka | 1 | 16111182609 | $1.13 | Shop at ECS Tuning | |||||
| 03 | Distanční objímka | 1 | 11/2020 | 16137194473 | $5.35 | Shop at ECS Tuning | ||||
| 03 | Distanční objímka | 1 | 16115A1FA19 | Shop at ECS Tuning | ||||||
| 04 | Adaptér na palivovou nádrž | 2 | 16146750466 | $3.60 | Shop at ECS Tuning | |||||
| 05 | Přívodní vedení | 1 | 16126760754 | $30.47 | Shop at ECS Tuning | |||||
| 06 | Odvzdušňovací potrubí | 1 | 16136760798 | $70.95 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Upínací pás | 2 | 16117200073 | $26.17 | Shop at ECS Tuning | |||||
| 08 | Pryžová průchodka | 4 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| 09 | Distanční objímka | 4 | 16117195118 | Shop at ECS Tuning | ||||||
| 10 | Šestihranný šroub | M8X30-PF-U2-8.8 | 5 | 07119906672 | Shop at ECS Tuning | |||||
| 11 | Distanční pryž | 2 | 16116750477 | $2.03 | Shop at ECS Tuning | |||||
| 12 | Distanční pryž | 2 | 16111183134 | $1.68 | Shop at ECS Tuning | |||||
| 13 | Držák vedení | 2 | 16131184924 | $2.17 | Shop at ECS Tuning | |||||
| 14 | Držák hadice | 1 | 13907506771 | $1.73 | Shop at ECS Tuning | |||||
| 15 | Uzavírací víko nádrže | 1 | 16117222391 | +core | Shop at ECS Tuning | |||||
| 16 | Tlumicí pás | 50X30X12MM | 2 | 16116765777 | $1.13 | Shop at ECS Tuning | ||||
| 17 | Podložka | 35X45X6 MM | 2 | 16111182585 | $1.08 | Shop at ECS Tuning | ||||
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
