Palivové potrubí/upevňovací díly for BMW MINI Paceman R61 Cooper

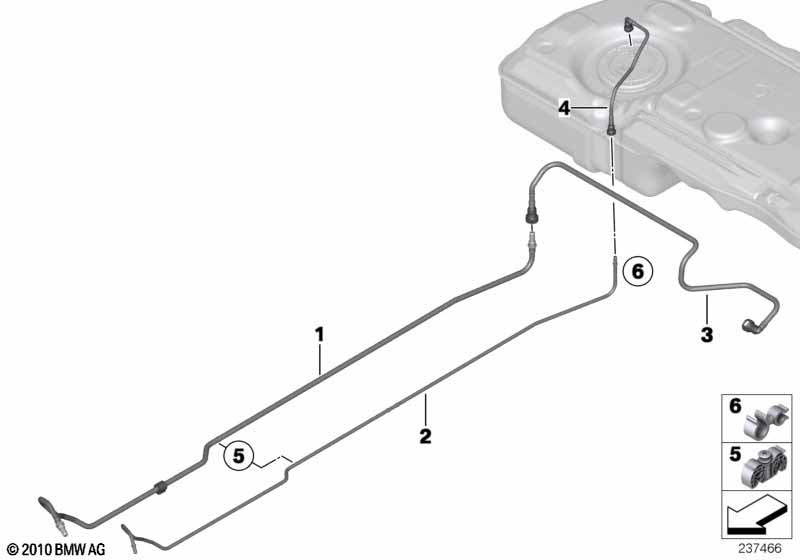

This Palivové potrubí/upevňovací díly technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vedení profukovacího vzduchu | 1 | 16129802361 | Shop at ECS Tuning | ||||||
| 02 | Přívodní vedení | 1 | 16129800716 | Shop at ECS Tuning | ||||||
| 03 | Vedení profukovacího vzduchu zadní | 1 | 16119800729 | Shop at ECS Tuning | ||||||
| 04 | Přívodní palivové vedení vzadu | 1 | 16119800706 | Shop at ECS Tuning | ||||||
| 05 | Vodicí svorka dvojitá | 5 | 16122754413 | $6.14 | Shop at ECS Tuning | |||||
| 06 | Držák hadice | 1 | 13537831681 | $1.08 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Paceman R61 Cooper Palivové potrubí/upevňovací díly?
- This technical diagram illustrates the Palivové potrubí/upevňovací díly within the Zásobování palivem group for the MINI Paceman R61 Cooper. It provides a detailed exploded view of the components, identifying key parts such as the Vedení profukovacího vzduchu (Part #16129802361).
- Which models use the hardware listed in this Palivové potrubí/upevňovací díly?
- The hardware and components featured in the Palivové potrubí/upevňovací díly are specific to the MINI Paceman R61 Cooper. These technical specifications ensure that parts like the Vedení profukovacího vzduchu (16129802361) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Palivové potrubí/upevňovací díly assembly?
- Each item in the Palivové potrubí/upevňovací díly corresponds to the numbered list below the illustration. For the MINI Paceman R61 Cooper, you can identify the Vedení profukovacího vzduchu by locating its position on the schematic, which then links to the official BMW part number 16129802361 for the Zásobování palivem section.
