Palivová potrubí for BMW 6 Series E63 LCI 635d (2010)

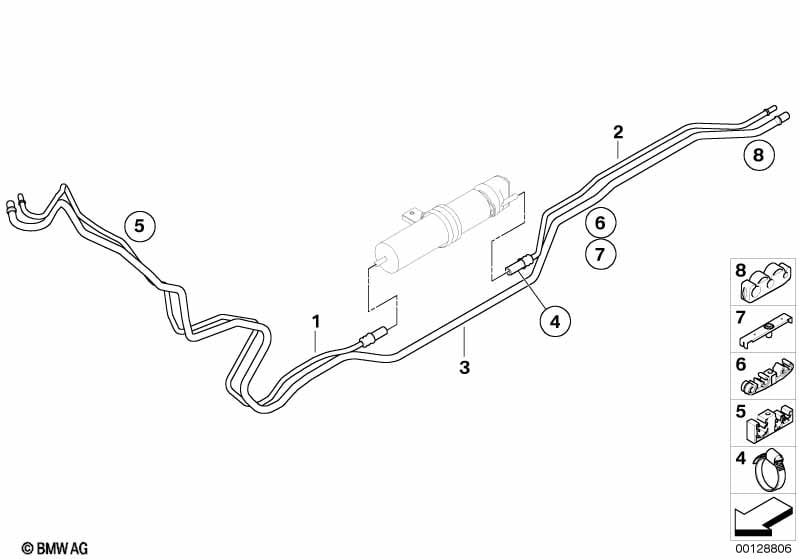

This Palivová potrubí technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 635d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Přívodní vedení přední | 1 | 16127180922 | Shop at ECS Tuning | ||||||
| 02 | Přívodní vedení zadní | 1 | 16127180921 | Shop at ECS Tuning | ||||||
| 03 | Zpětné potrubí | 1 | 16127180924 | Shop at ECS Tuning | ||||||
| 04 | hadicová spona | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Trojitá spona | 1 | 16126755011 | $1.28 | Shop at ECS Tuning | |||||
| 06 | Vodicí svorka | 6 | 03/2008 | 16127176926 | $3.07 | UKONČENO | Shop at ECS Tuning | |||
| 08 | Tlumič kmitů | 1 | 16126762681 | $3.60 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
