Kryt ventilátoru for BMW 5 Series E34 525i (1990)

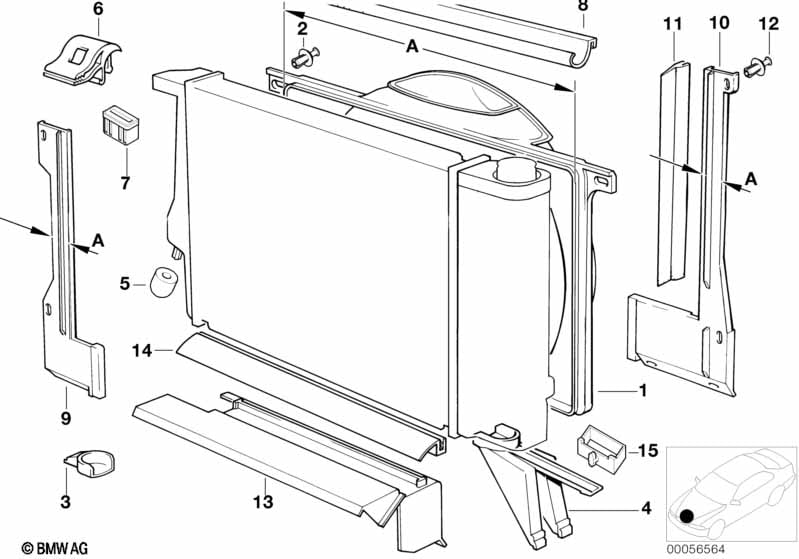

This Kryt ventilátoru technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kryt ventilátoru | A=440MM | 1 | 17111712371 | $33.35 | Shop at ECS Tuning | ||||
| Pro vozidla s Klimatizace |
S530A=Ano |
|||||||||
| 01 | Kryt ventilátoru | A=520MM | 1 | 17111712372 | $41.27 | Shop at ECS Tuning | ||||
| 02 | Rozpěrný nýt | 2 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 03 | Držák vodní chladič | A=30MM | 1 | 17111712347 | $3.22 | Shop at ECS Tuning | ||||
| 04 | Držák vodní chladič | A=90MM | 1 | 17111709332 | $4.78 | Shop at ECS Tuning | ||||
| 05 | Pryžový doraz | 2 | 17111178412 | $1.68 | Shop at ECS Tuning | |||||
| 06 | Držák horní | 2 | 17111712660 | $1.57 | Shop at ECS Tuning | |||||
| 07 | Pryžové ložisko | 2 | 17201719414 | $1.18 | Shop at ECS Tuning | |||||
| 08 | Tvarové těsnění | L=647MM | 1 | 17101712609 | $6.47 | Shop at ECS Tuning | ||||
| 09 | Kryt pravý | A=30MM | 1 | 17111712495 | $11.38 | Shop at ECS Tuning | ||||
| Pro vozidla s Klimatizace |
S530A=Ano |
|||||||||
| 09 | Kryt pravý | A=10MM | 1 | 17111712022 | $9.83 | Shop at ECS Tuning | ||||
| 10 | Kryt levý | A=180MM | 1 | 17111712494 | $16.96 | Shop at ECS Tuning | ||||
| Pro vozidla s Klimatizace |
S530A=Ano |
|||||||||
| 10 | Kryt levý | A=120MM | 1 | 17111712493 | $14.87 | Shop at ECS Tuning | ||||
| 11 | Tvarové těsnění | L=483MM | 2 | 17111719321 | $3.80 | Shop at ECS Tuning | ||||
| 12 | Rozpěrný nýt | 6 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 13 | Kryt dolní | L=395MM | 1 | 17111719333 | $7.55 | Shop at ECS Tuning | ||||
| Pro vozidla s Klimatizace |
S530A=Ano |
|||||||||
| 13 | Kryt dolní | L=483MM | 1 | 17111712687 | $10.37 | Shop at ECS Tuning | ||||
| 14 | Tvarové těsnění | L=547MM | 1 | 17111723015 | $42.38 | Shop at ECS Tuning | ||||
