Vyrovnávací nádoba for BMW 8 Series E31 840i (1996)

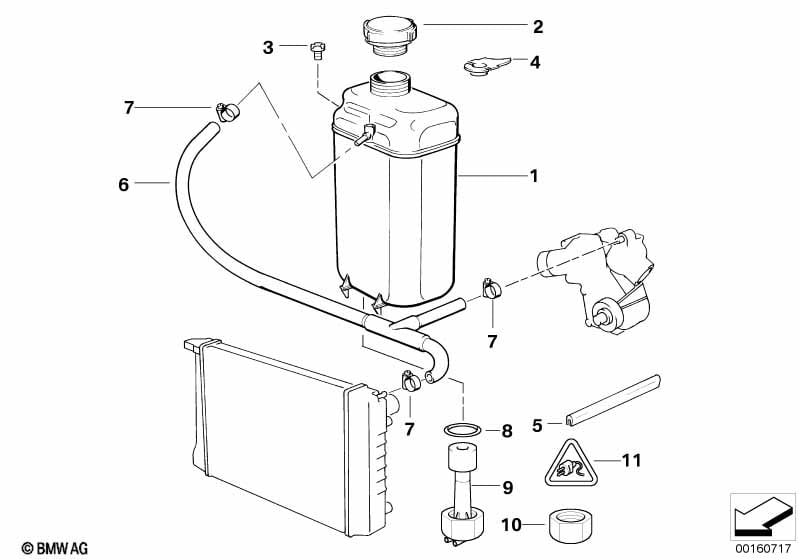

This Vyrovnávací nádoba technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vyrovnávací nádoba | 1 | 17111741167 | $79.43 | Shop at ECS Tuning | |||||
| bez hladinového spínače |
||||||||||
| 02 | Uzavírací víčko chladiče | 2,0BAR | 1 | 17117639022 | Shop at ECS Tuning | |||||
| 03 | Odvzdušňovací šroub | M10X1-SW | 1 | 17111712788 | $3.17 | Shop at ECS Tuning | ||||
| 04 | Víčko | 1 | 17111723117 | $2.38 | Shop at ECS Tuning | |||||
| 05 | Metrové zboží ochrana hrany | 5 METER | 1 | 23148372833 | $12.43 | Shop at ECS Tuning | ||||
| 06 | Odvzdušňovací hadice | 1 | 17101704412 | $17.72 | Shop at ECS Tuning | |||||
| 07 | hadicová spona | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 09 | Hladinový spínač vodní chladič | 1 | 09/1998 | 61318360876 | $32.46 | Shop at ECS Tuning | ||||
| 10 | Šroubovací víčko | 1 | 17111719430 | $3.43 | Shop at ECS Tuning | |||||
| 11 | univerzální zdířková skříň nekódovaná | 2 POL. | 1 | 61138795954 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt MQS ELA s kabelem | 0,35-0,5 MM² AG | 1 | 61130056961 | Shop at ECS Tuning | |||||
