Chladicí systém - hadice chlazení for BMW 5 Series E61 530d (2006)

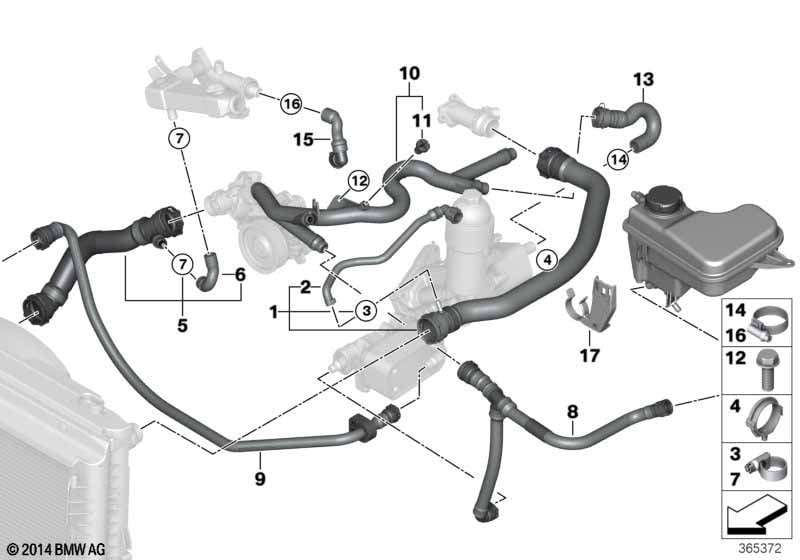

This Chladicí systém - hadice chlazení technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pro vozidla s Automatická převodovka nebo Sport-automatická převodovka |
S205A=Ano S2TBA=Ano |
||||||||
| 01 | Hadice chlazení | 1 | 17127787449 | $101.03 | +core | Shop at ECS Tuning | ||||
| 02 | Odvzdušňovací hadice | 1 | 17127787465 | Shop at ECS Tuning | ||||||
| 03 | hadicová spona | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Držák hadice | 1 | 11531714433 | $2.39 | Shop at ECS Tuning | |||||
| 05 | Hadice chlazení | 1 | 17127795262 | +core | Shop at ECS Tuning | |||||
| 06 | Hadice odbočka chladič recirkul. spalin | 1 | 17127789600 | +core | Shop at ECS Tuning | |||||
| 07 | hadicová spona | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Hadice chlazení | 1 | 17127787456 | $54.57 | +core | Shop at ECS Tuning | ||||
| 09 | Hadice chlazení | 1 | 17127796273 | $56.20 | Shop at ECS Tuning | |||||
| 10 | Zpětné potrubí | 1 | 11537806706 | $59.75 | Shop at ECS Tuning | |||||
| 11 | Odvzdušňovací šroub | M10 | 1 | 11537793373 | $5.79 | Shop at ECS Tuning | ||||
| 12 | Šroub s nákružkem | M6X18-ZNS3 | 2 | 11537804636 | $0.60 | Shop at ECS Tuning | ||||
| 13 | Hadice výměník tepla - zpětné potrubí | 1 | 11537788999 | Shop at ECS Tuning | ||||||
| 14 | hadicová spona | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 15 | Hadice chladič recirkulace spalin | 1 | 11537792622 | $11.33 | +core | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | hadicová spona | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 16 | hadicová spona | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 530d Chladicí systém - hadice chlazení?
- This technical diagram illustrates the Chladicí systém - hadice chlazení within the Chladič group for the 5 Series E61 530d produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Hadice chlazení (Part #17127787449).
- Which models use the hardware listed in this Chladicí systém - hadice chlazení?
- The hardware and components featured in the Chladicí systém - hadice chlazení are specific to the 5 Series E61 530d produced during 2006. These technical specifications ensure that parts like the Hadice chlazení (17127787449) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Chladicí systém - hadice chlazení assembly?
- Each item in the Chladicí systém - hadice chlazení corresponds to the numbered list below the illustration. For the 5 Series E61 530d, you can identify the Hadice chlazení by locating its position on the schematic, which then links to the official BMW part number 17127787449 for the Chladič section.
