Chladicí systém - hadice chlazení for BMW 4 Series F36 Gran Coupé LCI 440i (2020)

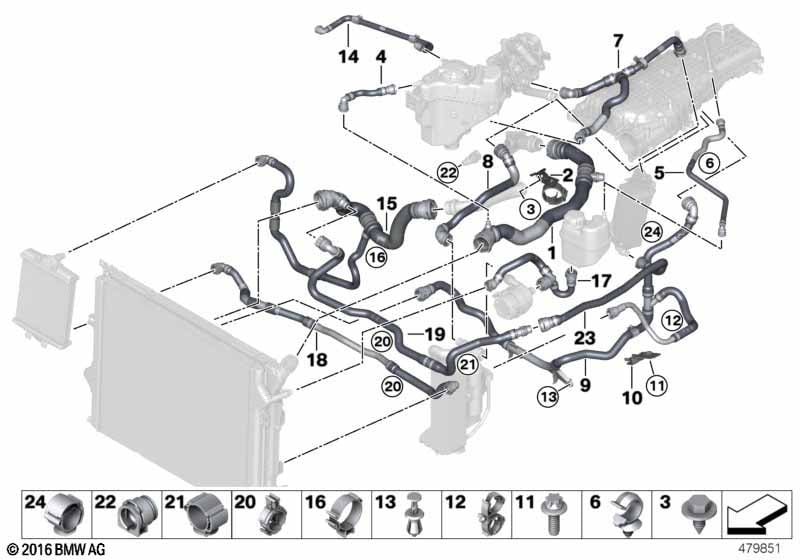

This Chladicí systém - hadice chlazení technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé LCI 440i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hadice motor přívod chladiče horní | 1 | 17128616548 | Shop at ECS Tuning | ||||||
| 02 | Držák hadice | 1 | 17128632635 | Shop at ECS Tuning | ||||||
| 03 | Šestihranný šroub s podložkou | M3X16-C-U2-ZNS3 | 1 | 07119906203 | Shop at ECS Tuning | |||||
| 04 | Hadice chladič - vyrovnávací nádoba | 1 | 17128620944 | Shop at ECS Tuning | ||||||
| 05 | Hadice chladič plnicího vzduchu - | 1 | 17128616530 | Shop at ECS Tuning | ||||||
| 06 | Držák vedení | D16-18 | 1 | 07147308194 | Shop at ECS Tuning | |||||
| 07 | Hadice vyrovnávací nádoba | 1 | 17128616558 | Shop at ECS Tuning | ||||||
| 08 | Hadice čerpadlo chladicí kapaliny | 1 | 17128634284 | Shop at ECS Tuning | ||||||
| 09 | Hadice chladič chladicí kapaliny-motor | 1 | 17128634283 | Shop at ECS Tuning | ||||||
| 10 | Plechový držák | 1 | 17128616817 | Shop at ECS Tuning | ||||||
| 11 | Šroub ASA závitořezný | M6X16 | 1 | 34509804151 | Shop at ECS Tuning | |||||
| 12 | Dvojitá svorka | D=19-22 | 1 | 17128608773 | Shop at ECS Tuning | |||||
| 13 | Rozpěrný nýt | 2 | 17127620959 | Shop at ECS Tuning | ||||||
| 14 | Trubka hlava válců | 1 | 17128616555 | Shop at ECS Tuning | ||||||
| 15 | Hadice chladič-motor | 1 | 17128662840 | Shop at ECS Tuning | ||||||
| 16 | Hranová spona | D=38-40MM | 1 | 17128636334 | Shop at ECS Tuning | |||||
| 17 | Vedení vyrovnávací nádoba | 1 | 17128616531 | Shop at ECS Tuning | ||||||
| 18 | Hadice chladiče chladicí kapaliny | 1 | 17128616560 | Shop at ECS Tuning | ||||||
| 19 | Hadice chladiče chladicí kapaliny | 1 | 17128662837 | Shop at ECS Tuning | ||||||
| 20 | Držák hadice | 3 | 17127599703 | Shop at ECS Tuning | ||||||
| 21 | Držák hadice | D=23MM | 1 | 17127619358 | Shop at ECS Tuning | |||||
| 22 | Zátka | D=12 | 1 | 11531439134 | $8.82 | Shop at ECS Tuning | ||||
| 23 | Hadice chladiče chladicí kapaliny | 1 | 17128673993 | Shop at ECS Tuning | ||||||
| 24 | Držák hadice | 2 | 17127807844 | $1.22 | Shop at ECS Tuning |
