Hadice chlazení for BMW 6 Series E64 LCI 650i (2010)

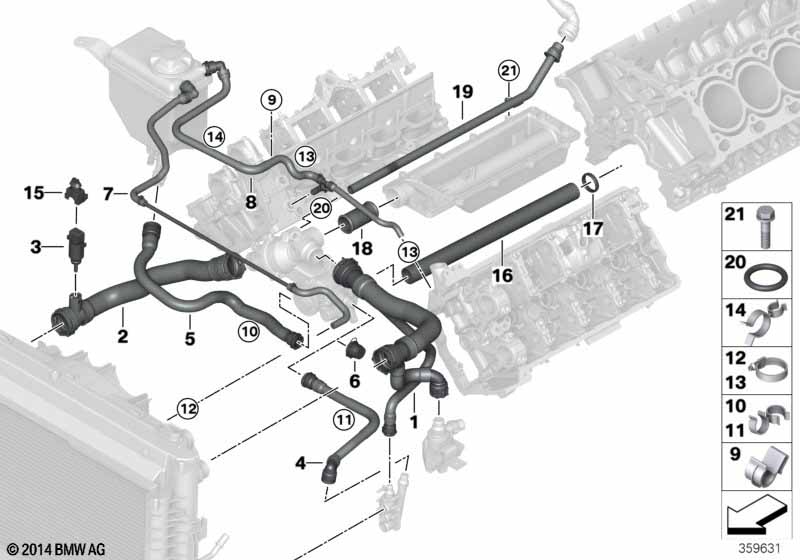

This Hadice chlazení technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Přívodní hadice | 1 | 17127540665 | $87.15 | +core | Shop at ECS Tuning | ||||
| 02 | Zpětná hadice | 1 | 17127540666 | $43.58 | +core | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Držák hadice | D=18/20 | 1 | 17221341603 | $1.87 | Shop at ECS Tuning | ||||
| 03 | Teplotní čidlo chladicí prostředek | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| 05 | Zpětná hadice | 1 | 17127545653 | $44.87 | +core | Shop at ECS Tuning | ||||
| Pro vozidla s Převodovka |
=Ano |
|||||||||
| 06 | Zátka | D=12 | 1 | 11531439134 | $8.82 | Shop at ECS Tuning | ||||
| 07 | Odvzdušňovací potrubí | 1 | 17127534917 | $46.28 | +core | Shop at ECS Tuning | ||||
| 08 | Odvzdušňovací potrubí | 1 | 07/2004 | 17127542540 | $47.63 | Shop at ECS Tuning | ||||
| 09 | Držák hadice | 1 | 17111719199 | $1.18 | Shop at ECS Tuning | |||||
| 10 | Držák hadice | 40/24 | 1 | 17127510098 | $2.37 | Shop at ECS Tuning | ||||
| 11 | Držák hadice | D=18/D=25 | 1 | 12511309471 | $1.50 | Shop at ECS Tuning | ||||
| 12 | hadicová spona | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 13 | hadicová spona | L=9-12 | 2 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 14 | Držák hadice | 13/16 | 1 | 11641740398 | $1.77 | Shop at ECS Tuning | ||||
| 15 | Pouzdro zásuvky | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt SLK 2,8 ELA | 0,22-0,35MM² AG | 1 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| 16 | Potrubí chladicí kapaliny přívod | 1 | 11141439975 | $53.40 | Shop at ECS Tuning | |||||
| 17 | O-kroužek | 34,2X4,0MM | 1 | 11531710048 | $2.69 | Shop at ECS Tuning | ||||
| 18 | Zpětné potrubí | 1 | 11511439976 | $16.15 | Shop at ECS Tuning | |||||
| 19 | Zpětné potrubí topení | 1 | 11537502793 | $59.75 | Shop at ECS Tuning | |||||
| 20 | O-kroužek | 17,0X3,0MM | 1 | 11517507717 | $2.42 | Shop at ECS Tuning | ||||
| 21 | Šestihranný šroub s podložkou | M6X25-ZNNIV SI | 1 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- SI = Service-Information (Servisní informace)
