Chladicí systém - hadice chlazení motor for BMW 5 Series G60 Limuzína 520d (2025)

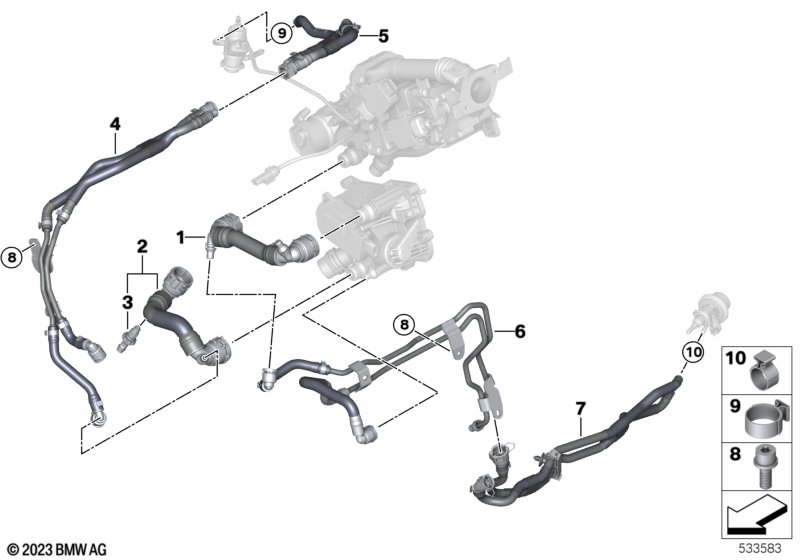

This Chladicí systém - hadice chlazení motor technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Limuzína 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vedení bloku motoru | 1 | 11538474071 | Shop at ECS Tuning | ||||||
| 02 | Vedení EGR chladič-čerpadlo chlad. média | 1 | 11538474072 | Shop at ECS Tuning | ||||||
| 03 | Snímač teploty chladicí kapaliny | 1 | 13627823993 | Shop at ECS Tuning | ||||||
| 04 | Vedení chladicího média | 1 | 11539886426 | Shop at ECS Tuning | ||||||
| 05 | Vedení chlad. média, dávkovací modul SCR | 1 | 11538474431 | Shop at ECS Tuning | ||||||
| 06 | Vedení dávkovacího modulu SCR | 1 | 11538479907 | Shop at ECS Tuning | ||||||
| 07 | Vedení dávk.modul-přívod/zpět.potrubí | 1 | 17129886663 | NoS | Shop at ECS Tuning | |||||
| 08 | Šroub Torx s podložkou | M6X16-8.8-ZNNIV | 5 | 07129904819 | $0.38 | Shop at ECS Tuning | ||||
| 09 | hadicová spona | L12-14,5 | 2 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 10 | hadicová spona | 10-12 | 2 | 32411131373 | Shop at ECS Tuning |
