Díly zavěšení výfuku for BMW 6 Series E24 635CSi

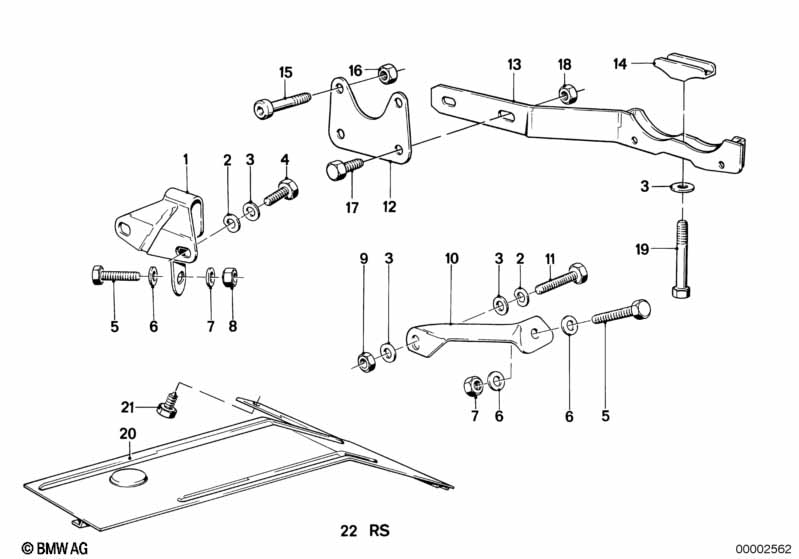

This Díly zavěšení výfuku technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sada upevňovací díly | 1 | 09/1979 | 09/1981 | 18219057193 | UKONČENO | Shop at ECS Tuning | |||
| 02 | Pružná podložka | 8,4X15-ZNS3 | 2 | 09/1979 | 09/1981 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| 03 | Podložka | A8,4 | 2 | 09/1979 | 09/1981 | 33311108205 | $0.16 | Shop at ECS Tuning | ||
| 04 | Šestihranný šroub | M8X18-8.8-ZNS3 | 2 | 09/1979 | 09/1981 | 07119904146 | $0.65 | Shop at ECS Tuning | ||
| 05 | Šestihranný šroub | M8X40-ZNNIV SI | 1 | 09/1979 | 09/1981 | 07119905549 | $1.05 | Shop at ECS Tuning | ||
| 06 | Podložka | 8,4X16X1,6-ZNNV | 2 | 09/1979 | 09/1981 | 07119907030 | Shop at ECS Tuning | |||
| 07 | Podložka | 8,4 | 1 | 09/1979 | 09/1981 | 33311108204 | $0.18 | Shop at ECS Tuning | ||
| 08 | Šestihranná matice s přírubou | M8 | 1 | 09/1979 | 09/1981 | 18307620549 | Shop at ECS Tuning | |||
| 12 | Držák | 1 | 09/1981 | 05/1982 | 18211176467 | $9.99 | Shop at ECS Tuning | |||
| 13 | Držák výfuku | 1 | 09/1981 | 05/1982 | 18211176464 | $6.76 | Shop at ECS Tuning | |||
| 14 | Trubková objímka | 1 | 09/1981 | 05/1982 | 18211176717 | $11.57 | Shop at ECS Tuning | |||
| 15 | Šroub s válcovou hlavou | M8X40-8.8-ZNS3 | 2 | 09/1981 | 05/1982 | 07119902984 | $1.93 | Shop at ECS Tuning | ||
| 16 | Šestihranná matice samojisticí | M8-8-ZNNI SI | 2 | 09/1981 | 05/1982 | 07129906196 | $1.60 | Shop at ECS Tuning | ||
| 17 | Šestihranný šroub | M8X16-10.9-PHR | 2 | 09/1981 | 05/1982 | 07119913612 | $0.62 | Shop at ECS Tuning | ||
| 18 | Matice s nákružkem | M8-8-SC-ZNNIV | 2 | 09/1981 | 05/1982 | 07119906089 | $0.32 | Shop at ECS Tuning | ||
| 19 | Šestihranný šroub | M8X65 | 1 | 09/1981 | 05/1982 | 07119903018 | Shop at ECS Tuning | |||
| 19 | Šestihranný šroub | M8X65 | 1 | 09/1981 | 05/1982 | 41117006311 | $6.28 | Shop at ECS Tuning | ||
| 20 | Tepelný ochranný kryt | 1 | 09/1979 | 05/1982 | 31111126464 | $9.57 | UKONČENO | Shop at ECS Tuning | ||
| 21 | Šestihranný šroub, plech | ST6,3X16-R-U2-Z | 2 | 09/1979 | 05/1982 | 07119905017 | $0.38 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
