Výfukové potrubí bez katalyzátoru for BMW 7 Series E23 728 (1979)

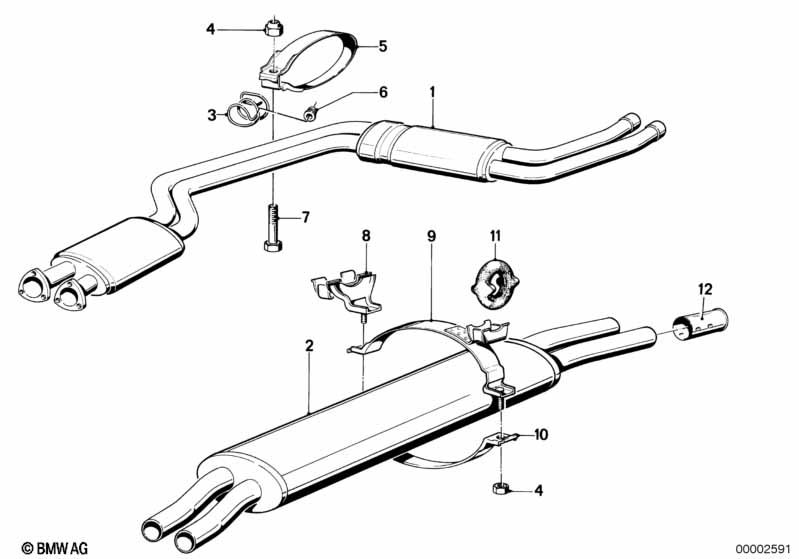

This Výfukové potrubí bez katalyzátoru technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Přední tlumič výfuku | 1 | 18121246146 | $323.43 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Zadní tlumič výfuku | 1 | 18121246128 | $327.27 | UKONČENO | Shop at ECS Tuning | ||||
| 03 | Pružina | 1 | 18211246857 | $16.07 | UKONČENO | Shop at ECS Tuning | ||||
| 04 | Matice s nákružkem | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 05 | Spona | 1 | 18211246313 | $5.34 | Shop at ECS Tuning | |||||
| 06 | Průchodka | 1 | 18211246315 | $0.84 | UKONČENO | Shop at ECS Tuning | ||||
| 07 | Šestihranný šroub | M8X45 | 1 | 07119913681 | $0.54 | Shop at ECS Tuning | ||||
| 08 | Uchycení | 1 | 18211246123 | $16.62 | Shop at ECS Tuning | |||||
| 09 | Spona | 1 | 18211246627 | $20.80 | Shop at ECS Tuning | |||||
| 10 | Spona | 1 | 18211246628 | $13.14 | Shop at ECS Tuning | |||||
| 11 | Pryžový kroužek | 2 | 18211712838 | $5.72 | Shop at ECS Tuning | |||||
| 12 | Koncovka trubky chrom | 42 MM | 2 | 82119413973 | $48.12 | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Výfukové potrubí bez katalyzátoru?
- This technical diagram illustrates the Výfukové potrubí bez katalyzátoru within the Výfukový systém group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Přední tlumič výfuku (Part #18121246146).
- Which models use the hardware listed in this Výfukové potrubí bez katalyzátoru?
- The hardware and components featured in the Výfukové potrubí bez katalyzátoru are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Přední tlumič výfuku (18121246146) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Výfukové potrubí bez katalyzátoru assembly?
- Each item in the Výfukové potrubí bez katalyzátoru corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Přední tlumič výfuku by locating its position on the schematic, which then links to the official BMW part number 18121246146 for the Výfukový systém section.
