Díly zavěšení výfuku for BMW 5 Series E28 520i (1987)

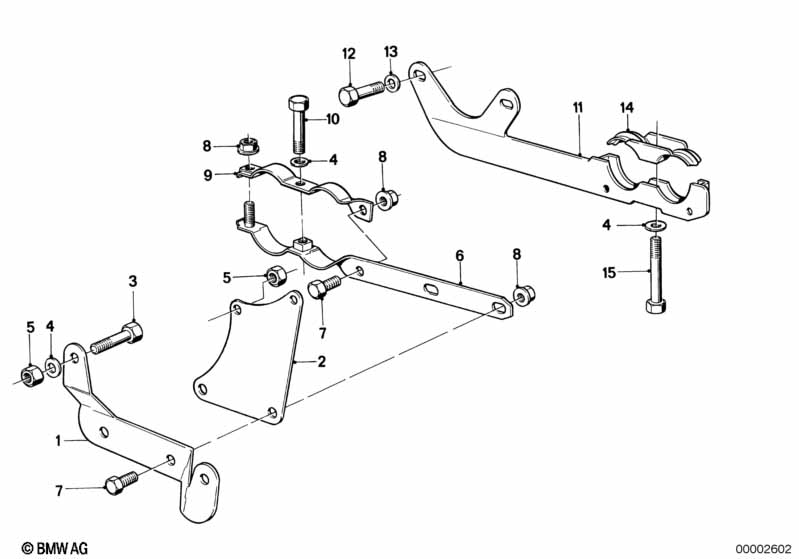

This Díly zavěšení výfuku technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s 5stupňová převodovka nebo Automatická převodovka 4HP22 |
=Ano =Ano |
|||||||||
| 11 | Držák výfuku | 1 | 09/1982 | 18211176617 | $16.38 | Shop at ECS Tuning | ||||
| 11 | Držák výfuku | 1 | 09/1982 | 18211176617 | $16.38 | Shop at ECS Tuning | ||||
| 12 | Šestihranný šroub | M8X22-8.8-ZNS3 | 2 | 09/1982 | 07119904040 | Shop at ECS Tuning | ||||
| 12 | Šestihranný šroub | M8X22-8.8-ZNS3 | 2 | 09/1982 | 07119904040 | Shop at ECS Tuning | ||||
| 13 | Podložka | A8,4 | 2 | 09/1982 | 33311108205 | $0.16 | Shop at ECS Tuning | |||
| 13 | Podložka | A8,4 | 2 | 09/1982 | 33311108205 | $0.16 | Shop at ECS Tuning | |||
| 14 | Trubková objímka | 1 | 09/1982 | 18211176919 | $10.64 | Shop at ECS Tuning | ||||
| 14 | Trubková objímka | 1 | 09/1982 | 18211176919 | $10.64 | Shop at ECS Tuning | ||||
| 15 | Šestihranný šroub | M8X55-8.8 | 1 | 09/1982 | 07119902957 | $5.27 | Shop at ECS Tuning | |||
| 15 | Šestihranný šroub | M8X55-8.8 | 1 | 09/1982 | 07119902957 | $5.27 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Díly zavěšení výfuku?
- This technical diagram illustrates the Díly zavěšení výfuku within the Výfukový systém group for the 5 Series E28 520i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Držák výfuku (Part #18211176617).
- Which models use the hardware listed in this Díly zavěšení výfuku?
- The hardware and components featured in the Díly zavěšení výfuku are specific to the 5 Series E28 520i produced during 1987. These technical specifications ensure that parts like the Držák výfuku (18211176617) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Díly zavěšení výfuku assembly?
- Each item in the Díly zavěšení výfuku corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Držák výfuku by locating its position on the schematic, which then links to the official BMW part number 18211176617 for the Výfukový systém section.
