Výfukové potrubí bez katalyzátoru for BMW 5 Series E28 520i (1987)

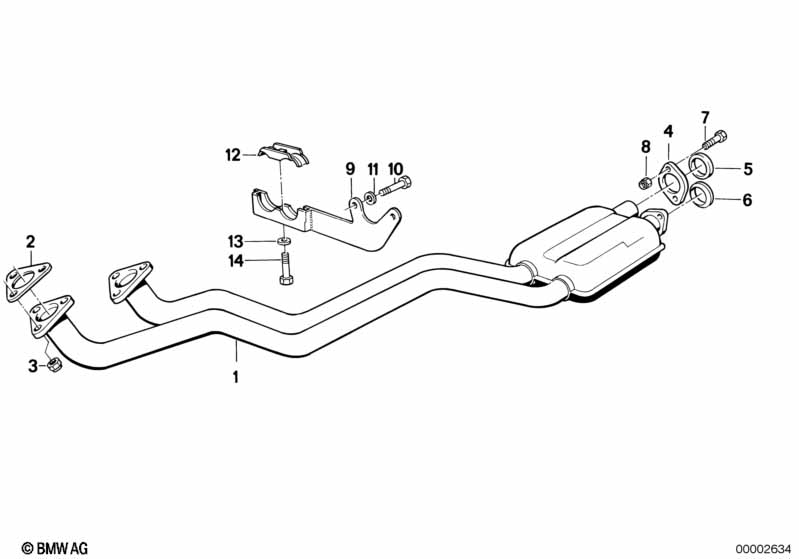

This Výfukové potrubí bez katalyzátoru technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Katalyzátor příprava Konvenční technika výfukových plynů |
|||||||||
| 01 | Výfukové potrubí katalyzátor příprava | 1 | 12/1986 | 18111712500 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Těsnění bez azbestu | 2 | 12/1986 | 11761711717 | $18.37 | Shop at ECS Tuning | ||||
| 03 | Šestihranná matice | M10 | X | 12/1986 | 18301737774 | $1.65 | Shop at ECS Tuning | |||
| 04 | Příruba | 1 | 12/1986 | 18111712064 | $12.64 | Shop at ECS Tuning | ||||
| 05 | Těsnicí kroužek bez azbestu | 45MM | 1 | 12/1986 | 18111723533 | Shop at ECS Tuning | ||||
| 06 | Kuželový kroužek | 42MM | 1 | 12/1986 | 18111245489 | $5.47 | Shop at ECS Tuning | |||
| 07 | Šestihranný šroub | M8X55-8.8 | 4 | 12/1986 | 07119902957 | $5.27 | Shop at ECS Tuning | |||
| 08 | Šestihranná matice s přírubou | M8 | 4 | 12/1986 | 18307620549 | Shop at ECS Tuning | ||||
| 09 | Držák výfuku | 1 | 12/1986 | 18211176617 | $16.38 | Shop at ECS Tuning | ||||
| 10 | Šestihranný šroub | M8X22-8.8-ZNS3 | 2 | 12/1986 | 07119904040 | Shop at ECS Tuning | ||||
| 11 | Podložka | A8,4 | 2 | 12/1986 | 33311108205 | $0.16 | Shop at ECS Tuning | |||
| 12 | Trubková objímka | 1 | 12/1986 | 18211176919 | $10.64 | Shop at ECS Tuning | ||||
| 13 | Podložka | 8,4X16X1,6-ZNNV | 1 | 12/1986 | 07119907030 | Shop at ECS Tuning | ||||
| 14 | Šestihranný šroub | M8X55-8.8 | 1 | 12/1986 | 07119902957 | $5.27 | Shop at ECS Tuning | |||
Notes
- Ukončeno = Díl se již nevyrábí.
