Výfukový systém s katalyzátorem for BMW 6 Series E24 635CSi

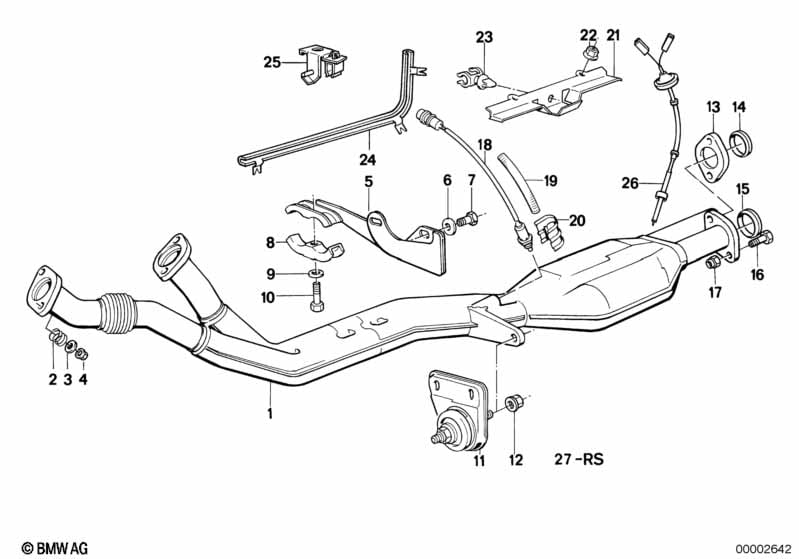

This Výfukový systém s katalyzátorem technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Výměna výfukové potrubí katalyzátor | 1 | 06/1987 | 11761716765 | UKONČENO | Shop at ECS Tuning | ||||
| 02 | Tlačná pružina | 4 | 06/1987 | 11761716668 | $5.81 | Shop at ECS Tuning | ||||
| 03 | Podložka | 4 | 06/1987 | 11621716346 | $0.37 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice s přírubou | M8 | 4 | 06/1987 | 18307620549 | Shop at ECS Tuning | ||||
| 11 | Uchycení | 1 | 06/1987 | 11761707417 | $107.45 | Shop at ECS Tuning | ||||
| 12 | Šestihranná matice s podložkou | M8 | 4 | 06/1987 | 51117070183 | $0.77 | Shop at ECS Tuning | |||
| 13 | Příruba | 1 | 06/1987 | 18111712070 | $15.61 | Shop at ECS Tuning | ||||
| 14 | Těsnicí kroužek | 50MM | 1 | 06/1987 | 18111723532 | Shop at ECS Tuning | ||||
| 15 | Těsnicí kroužek | 47MM | 1 | 06/1987 | 18111175311 | $8.37 | Shop at ECS Tuning | |||
| 16 | Šestihranný šroub | M8X55-8.8 | 4 | 06/1987 | 07119902957 | $5.27 | Shop at ECS Tuning | |||
| 17 | Šestihranná matice | M8 SW12 | 6 | 06/1987 | 11621744323 | $0.85 | Shop at ECS Tuning | |||
| 18 | Lambda sonda | L=1600MM | 1 | 06/1987 | 08/1987 | 11781714873 | $215.65 | SI 120396125 | Shop at ECS Tuning | |
| 18 | Lambda sonda | L=1520MM | 1 | 08/1987 | 11781720537 | $215.65 | SI 120396125 | Shop at ECS Tuning | ||
| 19 | Vinutá hadice | 100MM | 1 | 06/1987 | 61131363375 | $2.66 | Shop at ECS Tuning | |||
| 20 | Krycí plech | 1 | 06/1987 | 11781710590 | $33.49 | UKONČENO, +core | Shop at ECS Tuning | |||
| 21 | Držák | 1 | 06/1987 | 12521707275 | $3.11 | UKONČENO | Shop at ECS Tuning | |||
| 22 | Plastová matice čep s hrubým závitem | M6 | 2 | 06/1987 | 16131176747 | $0.53 | Shop at ECS Tuning | |||
| 23 | Uchycení | D = 13MM | 1 | 06/1987 | 61131371074 | $2.52 | UKONČENO | Shop at ECS Tuning | ||
| 24 | Vedení | 1 | 06/1987 | 11781310869 | $24.37 | UKONČENO | Shop at ECS Tuning | |||
| 25 | Uchycení | 1 | 06/1987 | 11781716175 | $8.20 | UKONČENO | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- SI = Service-Information (Servisní informace)
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
