Výfukový systém for BMW R45-R65LS..78-85 R65LS (1983)

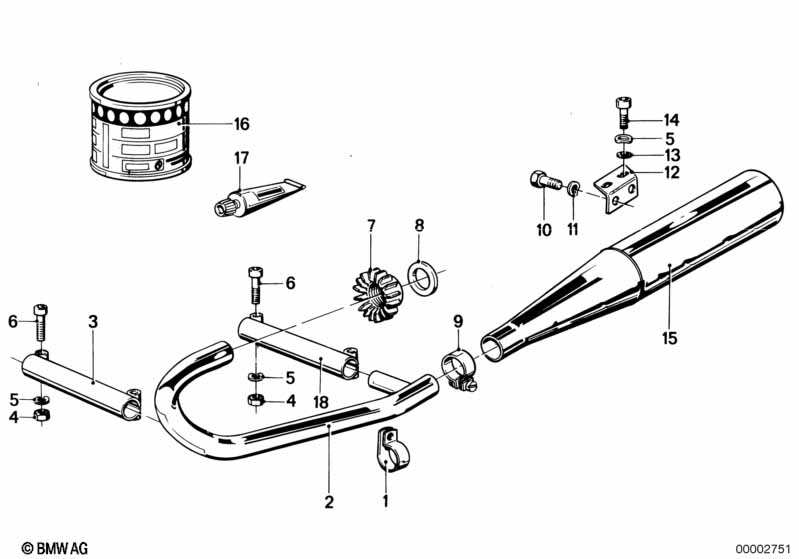

This Výfukový systém technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Upínací svorka pravá | 1 | 18211238274 | $8.81 | Shop at ECS Tuning | |||||
| 01 | Upínací svorka levá | 1 | 11/1982 | 18212302070 | $8.74 | Shop at ECS Tuning | ||||
| 02 | Výfuková trubka černá levá | 1 | 18111242685 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Výfuková trubka černá pravá | 1 | 18111242686 | UKONČENO | Shop at ECS Tuning | |||||
| 02 | Výfuková trubka černá levá | 1 | 18112302009 | $131.74 | +core | Shop at ECS Tuning | ||||
| 02 | Výfuková trubka černá pravá | 1 | 18112302010 | $131.74 | +core | Shop at ECS Tuning | ||||
| 03 | Příčná trubka černá | 1 | 18112302011 | $55.63 | +core | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Pružná podložka černá | B6-ZN | 8 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Podložka | 5.3-140 HV-ZNS | 8 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Pružná podložka | B6-ZNS3 | 8 | 07119904496 | $1.78 | UKONČENO | Shop at ECS Tuning | |||
| 06 | Šroub s válcovou hlavou | M6X30-8.8-ZNS | 4 | 31422311105 | $2.06 | Shop at ECS Tuning | ||||
| 07 | Matice | M48X2 | 2 | 18211335595 | $24.90 | Shop at ECS Tuning | ||||
| 08 | Upínací kroužek | 2 | 18211335598 | $14.11 | Shop at ECS Tuning | |||||
| 09 | Upínací pás | 37MM | 2 | 18211238282 | $12.82 | Shop at ECS Tuning | ||||
| 10 | Šestihranný šroub | M8X16-8.8-ZNS3 | 4 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Pružná podložka | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Úhelník | 2 | 18211233033 | $8.21 | Shop at ECS Tuning | |||||
| 13 | Podložka | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Isa-šroub | M6X16-8.8-ZNNIV | 4 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 15 | Tlumič výfuku černý vlevo | 1 | 18122302013 | $332.15 | +core | Shop at ECS Tuning | ||||
| 15 | Tlumič výfuku černý vpravo | 1 | 18122302014 | $332.15 | +core | Shop at ECS Tuning | ||||
| 16 | Lak z umělé pryskyřice černý | 600GRAD 250ML | X | 51912302221 | UKONČENO | Shop at ECS Tuning | ||||
| 17 | Montážní pasta | 100G | X | 18219062599 | Shop at ECS Tuning | |||||
| 18 | Příčná trubka černá zadní | 1 | 18112302012 | $58.92 | UKONČENO, +core | Shop at ECS Tuning |
Notes
- Ukončeno = Díl se již nevyrábí.
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
