Zadní tlumič výfuku for BMW 3 Series E46 318ti (2004)

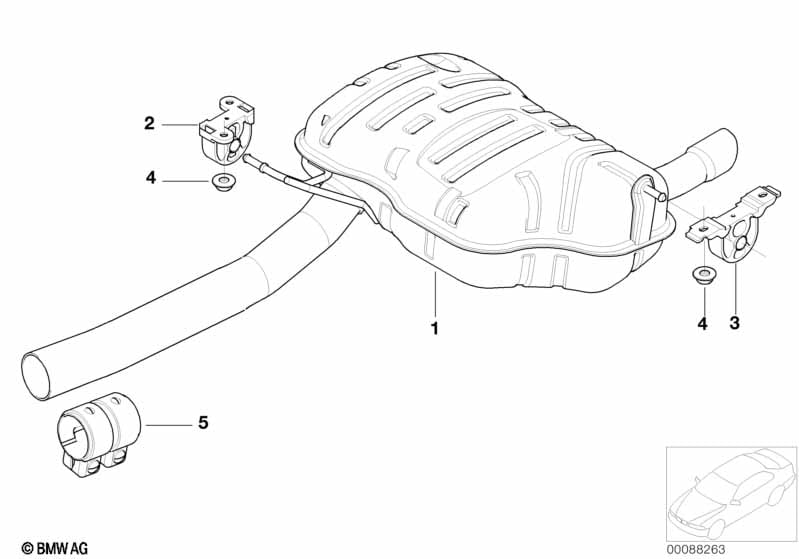

This Zadní tlumič výfuku technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zadní tlumič výfuku | 1 | 18107507800 | Shop at ECS Tuning | ||||||
| 02 | Pryžové ložisko | 1 | 18207528410 | Shop at ECS Tuning | ||||||
| 03 | Pryžové ložisko | 1 | 18207503246 | $21.41 | Shop at ECS Tuning | |||||
| 04 | Přírubová matice | M8 | 4 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Upínací objímka | D=60 X 70MM | 1 | 18307560777 | $34.61 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318ti Zadní tlumič výfuku?
- This technical diagram illustrates the Zadní tlumič výfuku within the Výfukový systém group for the 3 Series E46 318ti produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Zadní tlumič výfuku (Part #18107507800).
- Which models use the hardware listed in this Zadní tlumič výfuku?
- The hardware and components featured in the Zadní tlumič výfuku are specific to the 3 Series E46 318ti produced during 2004. These technical specifications ensure that parts like the Zadní tlumič výfuku (18107507800) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zadní tlumič výfuku assembly?
- Each item in the Zadní tlumič výfuku corresponds to the numbered list below the illustration. For the 3 Series E46 318ti, you can identify the Zadní tlumič výfuku by locating its position on the schematic, which then links to the official BMW part number 18107507800 for the Výfukový systém section.
