Katalyzátor/přední tlumič výfuku for BMW 3 Series E46 330i (2005)

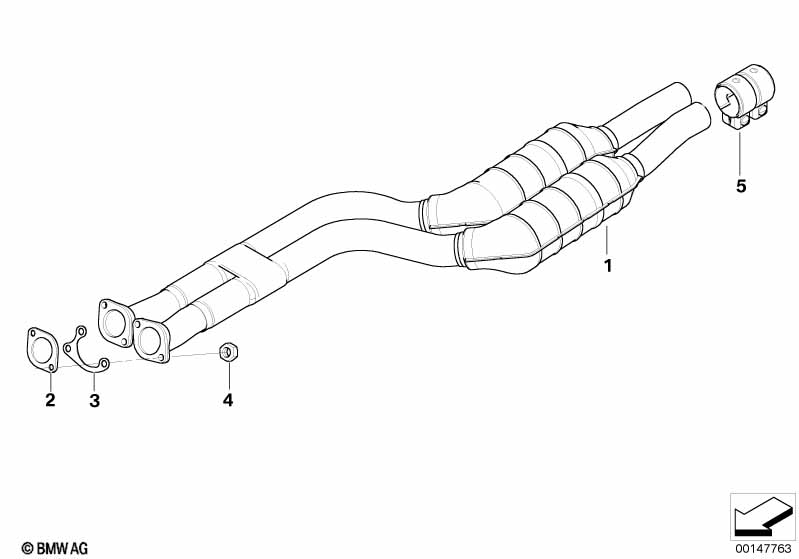

This Katalyzátor/přední tlumič výfuku technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP Výfuk. potrubí katalyzátor | EU3 | 1 | 09/2000 | 18307518698 | Shop at ECS Tuning | ||||
| Pro vozidla s Emisní norma výfukových plynů EU2 nebo Výbava pro palivo obsahující olovo |
S168A=Ano S199A=Ano |
|||||||||
| 01 | RP Výfuk. potrubí katalyzátor | EU2 | 1 | 09/2000 | 18307504359 | Shop at ECS Tuning | ||||
| 02 | Ploché těsnění | 2 | 09/2000 | 18107502346 | $11.93 | Shop at ECS Tuning | ||||
| 03 | Přírubové brýle | 1 | 09/2000 | 18107506146 | $5.35 | Shop at ECS Tuning | ||||
| 04 | Šestihranná matice | M10 | 4 | 09/2000 | 18301737774 | $1.65 | Shop at ECS Tuning | |||
| 05 | Upínací objímka | D=60 X 70MM | 2 | 09/2000 | 18307560777 | $34.61 | Shop at ECS Tuning | |||
