Výfukové potrubí zadní for BMW 1 Series E81 120i (2010)

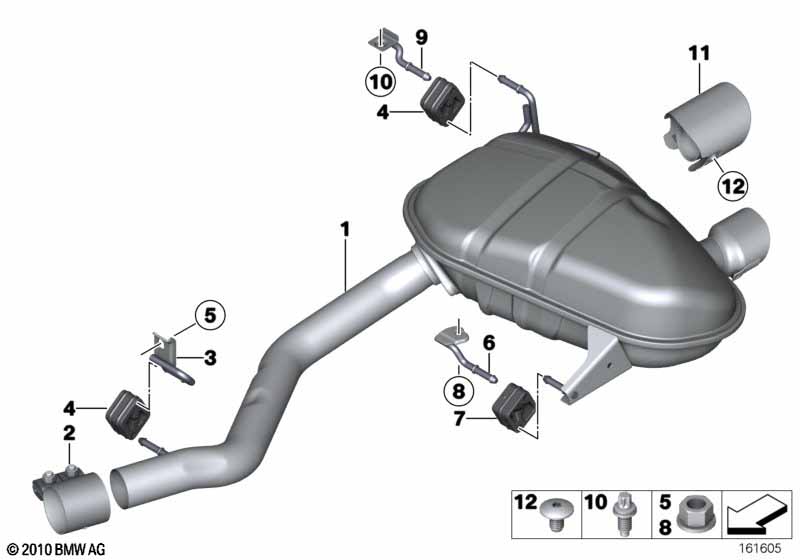

This Výfukové potrubí zadní technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 120i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zadní tlumič výfuku | 1 | 18307567693 | Shop at ECS Tuning | ||||||
| 02 | Upínací objímka | D=60 X 70MM | 1 | 18307560779 | $34.61 | Shop at ECS Tuning | ||||
| 03 | Uchycení | 1 | 18207522197 | Shop at ECS Tuning | ||||||
| 04 | Pryžové ložisko | 2 | 18207589950 | Shop at ECS Tuning | ||||||
| 05 | Šestihranná matice | M12X1,5ZNNIV SI | 1 | 07129904866 | $1.85 | Shop at ECS Tuning | ||||
| 06 | Uchycení | 1 | 18107522198 | Shop at ECS Tuning | ||||||
| 07 | Pryžové ložisko | 1 | 18207578238 | $16.30 | Shop at ECS Tuning | |||||
| 08 | Přírubová matice | M8 | 1 | 07143413174 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Šestihranná matice | M8-ZNS3 | 1 | 07119904024 | $0.20 | Shop at ECS Tuning | ||||
| Pro vozidla s Tažné zařízení odnímatelné |
S235A=Ne |
|||||||||
| 09 | Uchycení | 1 | 18107522201 | Shop at ECS Tuning | ||||||
| 10 | Šroub Torx s podložkou | ASA M8X25 | 1 | 51217062145 | $1.17 | Shop at ECS Tuning | ||||
| 11 | Koncovka trubky Alu-look | 1 | 18307575777 | Shop at ECS Tuning | ||||||
| 12 | Šroub s čočkovitou hlavou | M6X10 | 1 | 52537654427 | $3.06 | Shop at ECS Tuning | ||||
