Přední tlumič výfuku for BMW MINI Paceman R61 Cooper

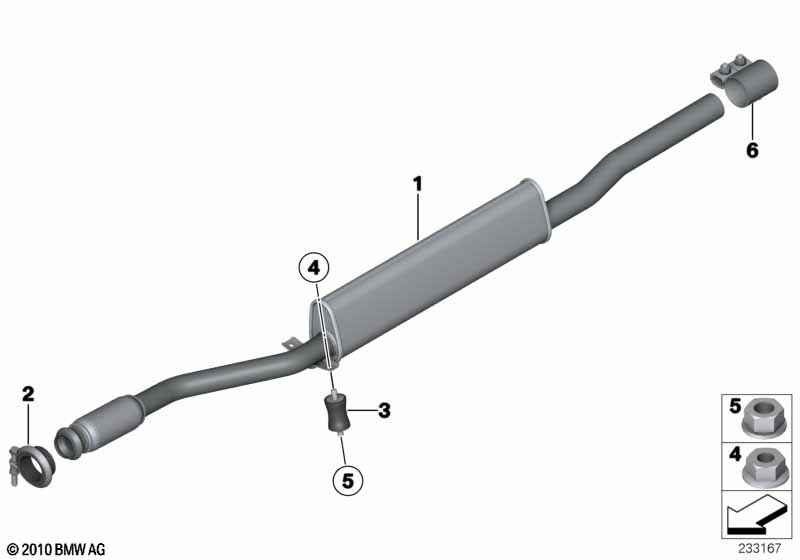

This Přední tlumič výfuku technical drawing provides a detailed breakdown of the assembly for the MINI Paceman R61 Cooper. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pro vozidla s Provedení Čína |
L8AAA=Ne |
|||||||||
| 01 | Přední tlumič výfuku | 1 | 18309811190 | Shop at ECS Tuning | ||||||
| Pro vozidla s Provedení Japonsko a Automatická převodovka |
L807A=Ano S205A=Ano |
|||||||||
| 01 | Přední tlumič výfuku | 1 | 18309809202 | Shop at ECS Tuning | ||||||
| 02 | Pásková spona V | D = 60MM | 1 | 18302756351 | $11.78 | Shop at ECS Tuning | ||||
| 03 | Pryžové ložisko | 2 | 18309804330 | Shop at ECS Tuning | ||||||
| 04 | Matice s nákružkem | M8-8-SC-ZNNIV | 2 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 05 | Šestihranná matice s podložkou | M8-ZNS3 | 2 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Upínací objímka | D=55 X 70MM | 1 | 18307560778 | $34.61 | Shop at ECS Tuning | ||||
