Spojkový kotouč for BMW R45-R65LS..78-85 R65LS (1983)

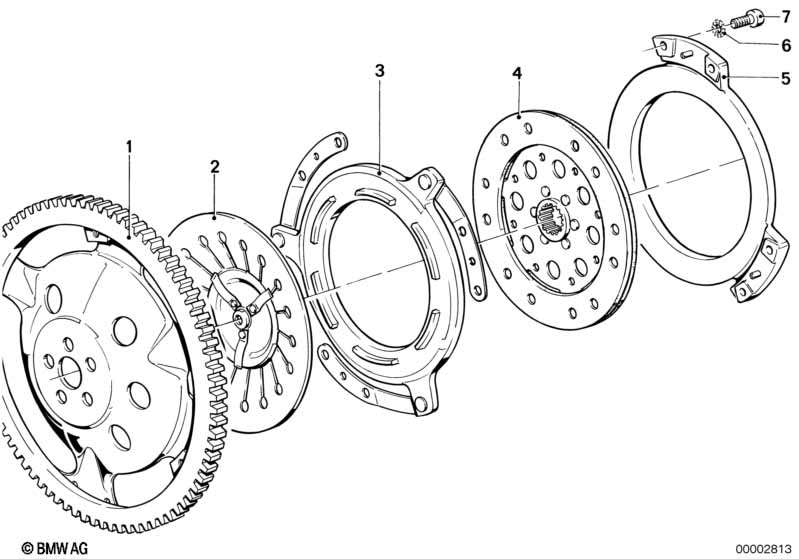

This Spojkový kotouč technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spojková skříň | 1 | 09/1980 | 21211338722 | $243.25 | +core | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Šroub s válcovou hlavou | M7X18-8.8 | 6 | 09/1980 | 21211338680 | $2.58 | Shop at ECS Tuning | |||
| 02 | Talířová pružina | 1 | 09/1980 | 21211242353 | $69.81 | UKONČENO, +core | Shop at ECS Tuning | |||
| 03 | Deska | 1 | 09/1980 | 21212302200 | $80.43 | +core | Shop at ECS Tuning | |||
| 04 | Spojkový kotouč | 1 | 09/1980 | 21211451512 | $174.62 | +core | Shop at ECS Tuning | |||
| 05 | Víko skříně | 1 | 09/1980 | 21211457280 | $177.70 | +core | Shop at ECS Tuning | |||
| 06 | Vějířová podložka | A7,4 | 6 | 09/1980 | 21211242377 | $0.81 | Shop at ECS Tuning | |||
| 07 | Šroub s válcovou hlavou | M7X18-8.8 | 6 | 09/1980 | 21211338680 | $2.58 | Shop at ECS Tuning | |||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
