Ovládání spojky for BMW MINI R50 Cooper (2000)

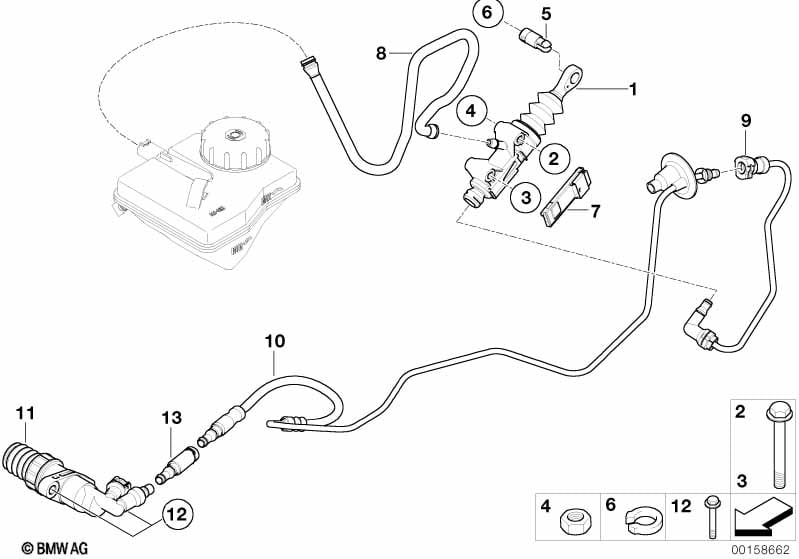

This Ovládání spojky technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hlavní válec spojka | 1 | 07/2004 | 21526774078 | $77.89 | Shop at ECS Tuning | ||||
| 02 | Šestihranný šroub | M6X50 8.8 ZNS3 | 1 | 07/2004 | 07119902993 | $0.59 | Shop at ECS Tuning | |||
| 03 | Šestihranný šroub | M6X45 8.8 ZNS3 | 1 | 07/2004 | 07119902976 | $0.45 | Shop at ECS Tuning | |||
| 04 | Šestihranná matice samojisticí | M6 ZNNIV SI | 2 | 07/2004 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 05 | Čep hlavní válec | 1 | 07/2004 | 35006878304 | Shop at ECS Tuning | |||||
| 07 | Modul spojkový spínač | 1 | 07/2004 | 35426876898 | Shop at ECS Tuning | |||||
| 08 | Sací potrubí spojka | 1 | 07/2004 | 21526756149 | $7.25 | Shop at ECS Tuning | ||||
| 09 | Tlakové vedení spojka | 1 | 07/2004 | 21527509238 | $15.15 | Shop at ECS Tuning | ||||
| 10 | Tlakové vedení spojka | 1 | 07/2004 | 21527511268 | $51.08 | Shop at ECS Tuning | ||||
| 11 | Pracovní válec spojka | 1 | 07/2004 | 21516777428 | $42.71 | Shop at ECS Tuning | ||||
| 12 | Šestihranný šroub s přírubou | M8X30 | 2 | 07/2004 | 07130782608 | $1.16 | Shop at ECS Tuning | |||
| 13 | Škrticí ventil | 1 | 07/2004 | 21526759187 | $15.72 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Ovládání spojky?
- This technical diagram illustrates the Ovládání spojky within the Spojka group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Hlavní válec spojka (Part #21526774078).
- Which models use the hardware listed in this Ovládání spojky?
- The hardware and components featured in the Ovládání spojky are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the Hlavní válec spojka (21526774078) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ovládání spojky assembly?
- Each item in the Ovládání spojky corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Hlavní válec spojka by locating its position on the schematic, which then links to the official BMW part number 21526774078 for the Spojka section.
