Uložení motoru for BMW 7 Series E38 740iL

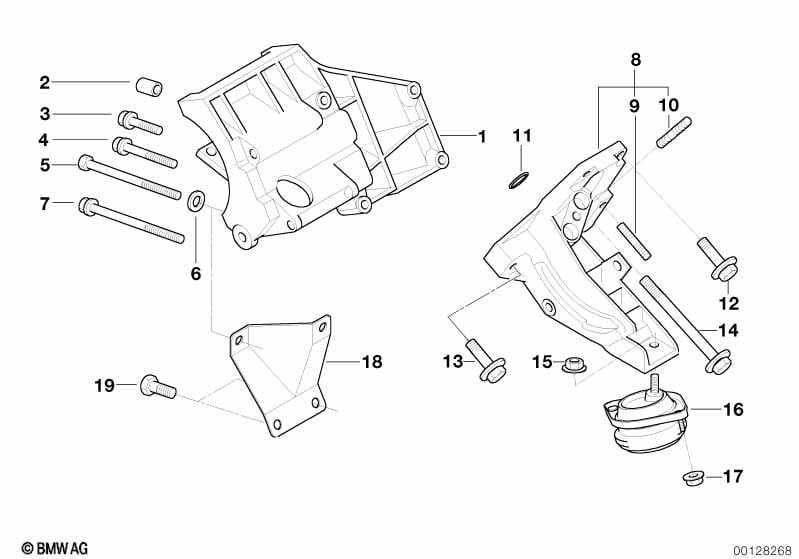

This Uložení motoru technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Konzola uložení kompresor klimatizace | 1 | 09/1997 | 64521747258 | $70.60 | +core | Shop at ECS Tuning | |||
| 01 | Konzola uložení kompresor klimatizace | 1 | 09/1997 | 64551433562 | $83.28 | Shop at ECS Tuning | ||||
| 02 | Lícovaná objímka | D=11,1MM | 2 | 11121726245 | $1.62 | Shop at ECS Tuning | ||||
| 03 | Šestihranný šroub s podložkou | M8X30-ZNNIV SI | 3 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 04 | Šestihranný šroub | M8X50-U1-8.8 | 2 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
| 05 | Šestihranný šroub s podložkou | M8X110-Z1-ZNS3 | 1 | 07119903956 | Shop at ECS Tuning | |||||
| 06 | Podložka | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 07 | Šestihranný šroub s podložkou | M8X90-U1 | 4 | 07119905392 | $1.53 | Shop at ECS Tuning | ||||
| 08 | Držák motoru levý | 1 | 04/1997 | 22121704581 | $64.56 | Shop at ECS Tuning | ||||
| 08 | Držák motoru levý | 1 | 04/1997 | 22121745739 | $67.38 | Shop at ECS Tuning | ||||
| 09 | Závrtný šroub | M6X28-ZN | 1 | 07129908111 | $0.63 | Shop at ECS Tuning | ||||
| 10 | Závrtný šroub | M8X40 | 1 | 07129903964 | Shop at ECS Tuning | |||||
| 11 | O-kroužek | 22X4 | 2 | 12311718712 | $1.59 | Shop at ECS Tuning | ||||
| 12 | Šestihranný šroub s podložkou | M8X110-Z1-ZNS3 | 1 | 04/1997 | 07119903956 | Shop at ECS Tuning | ||||
| 13 | Šestihranný šroub s podložkou | M8X30-ZNNIV SI | 2 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 14 | Šestihranný šroub | M8X50-U1-8.8 | 2 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
| 15 | Šestihranná matice | AM10-10-ZNS3 | 2 | 07129904865 | $1.00 | Shop at ECS Tuning | ||||
| 16 | Motorové ložisko s přírubou levé | 1 | 22111092823 | $92.13 | Shop at ECS Tuning | |||||
| 16 | Motorové ložisko s přírubou pravé | 1 | 22111092824 | $92.13 | Shop at ECS Tuning | |||||
| 17 | Šestihranná matice s podložkou | M8-ZNS3 | 4 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 18 | Vzpěra konzola uložení kompresor klima. | 1 | 64551432898 | $7.98 | Shop at ECS Tuning | |||||
| 19 | Šestihranný šroub | M8X20-ZNNIV SI | 3 | 07119903039 | Shop at ECS Tuning |
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740iL Uložení motoru?
- This technical diagram illustrates the Uložení motoru within the Zavěšení motoru/převodovky group for the 7 Series E38 740iL. It provides a detailed exploded view of the components, identifying key parts such as the Konzola uložení kompresor klimatizace (Part #64521747258).
- Which models use the hardware listed in this Uložení motoru?
- The hardware and components featured in the Uložení motoru are specific to the 7 Series E38 740iL. These technical specifications ensure that parts like the Konzola uložení kompresor klimatizace (64521747258) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Uložení motoru assembly?
- Each item in the Uložení motoru corresponds to the numbered list below the illustration. For the 7 Series E38 740iL, you can identify the Konzola uložení kompresor klimatizace by locating its position on the schematic, which then links to the official BMW part number 64521747258 for the Zavěšení motoru/převodovky section.
