Uložení motoru for BMW MINI R50 Cooper (2000)

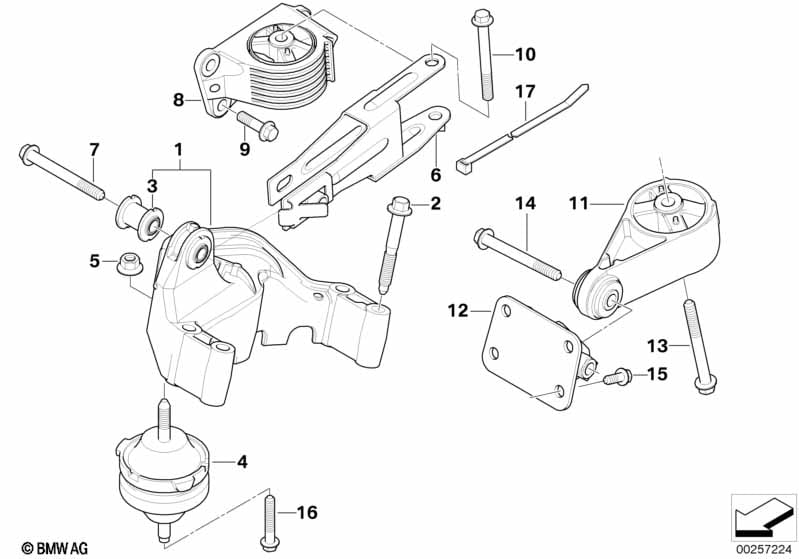

This Uložení motoru technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Nosník motoru | 1 | 12/2003 | 22111514490 | $64.41 | +core | Shop at ECS Tuning | |||
| 02 | Šestihranný šroub s podložkou | M12X85 | 4 | 12/2003 | 07119904648 | $3.82 | Shop at ECS Tuning | |||
| 03 | Pryžové ložisko | 1 | 12/2003 | 22116757369 | $4.22 | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| -- | Montážní pomůcka | 250ML | 1 | 12/2003 | 83192405829 | Shop at ECS Tuning | ||||
| 04 | Motorové ložisko | 1 | 12/2003 | 22116759732 | $62.80 | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| -- | Šroub Torx | M10X110 | 1 | 12/2003 | 22116759570 | $2.17 | Shop at ECS Tuning | |||
| -- | Šestihranná matice | M12X1,5-8-ZNS3 | 1 | 12/2003 | 07119904578 | $0.82 | Shop at ECS Tuning | |||
| 05 | Šestihranná matice | M12X1,5-8-ZNS3 | 1 | 12/2003 | 07119904578 | $0.82 | Shop at ECS Tuning | |||
| 06 | Nosný třmen motoru | 1 | 12/2003 | 22116758539 | Shop at ECS Tuning | |||||
| pouze společně s | ||||||||||
| -- | Kabelová spojka | L=292MM/B=4,8MM | 2 | 12/2003 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
| 07 | Šestihranný šroub | M12X1,5X60 | 1 | 12/2003 | 07119904156 | $3.82 | Shop at ECS Tuning | |||
| 08 | Držák s pryžovým ložiskem | 1 | 12/2003 | 22116756405 | $41.73 | Shop at ECS Tuning | ||||
| Oprava nutná | ||||||||||
| -- | Šestihranný šroub s podložkou | M12X1,5X100 | 1 | 12/2003 | 33176760343 | $2.05 | Shop at ECS Tuning | |||
| -- | Šestihranný šroub s přírubou | M12X1,5X30 | 3 | 12/2003 | 07119904684 | $2.25 | UKONČENO | Shop at ECS Tuning | ||
| 09 | Šestihranný šroub s nákružkem | M12X1,5X32 ZNS3 | 3 | 12/2003 | 34206850536 | Shop at ECS Tuning | ||||
| 10 | Šestihranný šroub s podložkou | M12X1,5X100 | 1 | 12/2003 | 33176760343 | $2.05 | Shop at ECS Tuning | |||
| 11 | Kyvná vzpěra | 1 | 12/2003 | 22116756406 | $41.73 | Shop at ECS Tuning | ||||
| 12 | Uchycení | 1 | 12/2003 | 22116754399 | $14.55 | Shop at ECS Tuning | ||||
| 14 | Šestihranný šroub | M12X1,5X60 | 1 | 12/2003 | 07119904156 | $3.82 | Shop at ECS Tuning | |||
| 15 | Šestihranný šroub | M10X20 | 4 | 12/2003 | 07119904574 | $1.53 | Shop at ECS Tuning | |||
| 17 | Kabelová spojka | L=292MM/B=4,8MM | 2 | 12/2003 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
| vhodné pouze pro | ||||||||||
| -- | Nosný třmen motoru | X | 12/2003 | 22116758539 | Shop at ECS Tuning | |||||
Notes
- +core = plus poplatek za střední část (možnost navrácení původního dílu)
- Ukončeno = Díl se již nevyrábí.
