Podtlakové ovládání-motorové ložisko for BMW 1 Series E87 LCI 118i (2011)

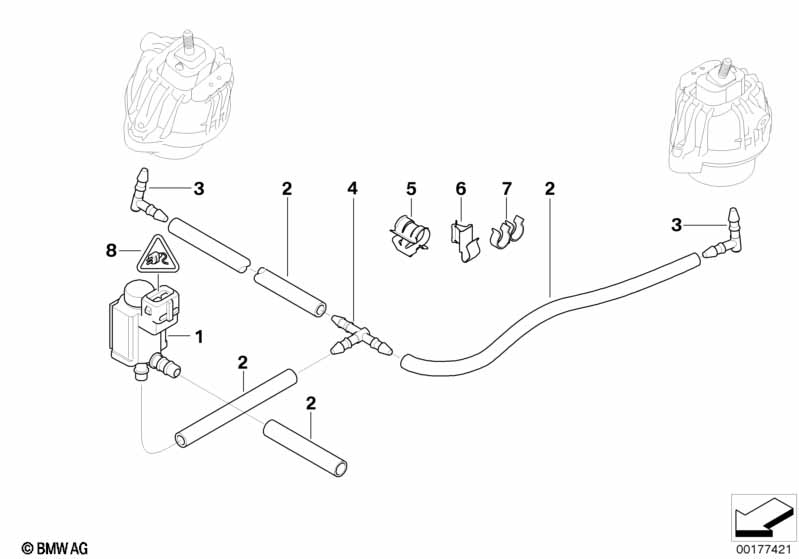

This Podtlakové ovládání-motorové ložisko technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Č. | Popis | Doplnění | Poč. | Od | Do | Číslo dílu | Cena | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Elektroventil | 1 | 11747810831 | $46.70 | Shop at ECS Tuning | |||||
| Pro vozidla s Automatická převodovka |
S205A=Ano |
|||||||||
| 02 | Podtlaková hadice černá | 3,5X2,0 | X | 06/2009 | 11747797129 | $17.14 | Shop at ECS Tuning | |||
| 03 | Úhelník | 2 | 06/2009 | 22116759728 | $0.79 | Shop at ECS Tuning | ||||
| 04 | T-spojka | 1 | 06/2009 | 11731261489 | $0.56 | Shop at ECS Tuning | ||||
| 05 | Upínací svorky | 3 | 06/2009 | 22111093424 | $0.24 | Shop at ECS Tuning | ||||
| 06 | Svorka vlnovec | 1 | 06/2009 | 12527531756 | $0.83 | Shop at ECS Tuning | ||||
| 07 | Distanční držák | 1 | 06/2009 | 61131379882 | Shop at ECS Tuning | |||||
| 08 | Pouzdro zásuvky | 2 POL. | 1 | 06/2009 | 12521427615 | $1.73 | Shop at ECS Tuning | |||
| pouze společně s | ||||||||||
| -- | Zdířkový kontakt SLK 2,8 ELA | 0,22-0,35MM² AG | 1 | 06/2009 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | ||
| -- | Ochranné víčko | 2 POL. | 1 | 06/2009 | 12521732694 | $2.10 | Shop at ECS Tuning | |||
Notes
- SI = Service-Information (Servisní informace)
